Product Description
The Outback Pathfinder 800W Surface Solar Water Transfer Pump Kit is a powerful solar surface pump designed for water transfer, irrigation supply, tank filling and general water movement applications where submersible pumps are not suitable. The system delivers a maximum flow of 37 litres per minute and pumping head up to 62 metres, making it ideal for moderate pressure water supply systems.
Powered by a high-efficiency 800W brushless DC motor and controlled by an intelligent AC/DC hybrid MPPT controller, the Pathfinder automatically prioritises solar energy while allowing backup operation from mains power or a generator when required. This ensures reliable water delivery during cloudy conditions or periods of increased demand.

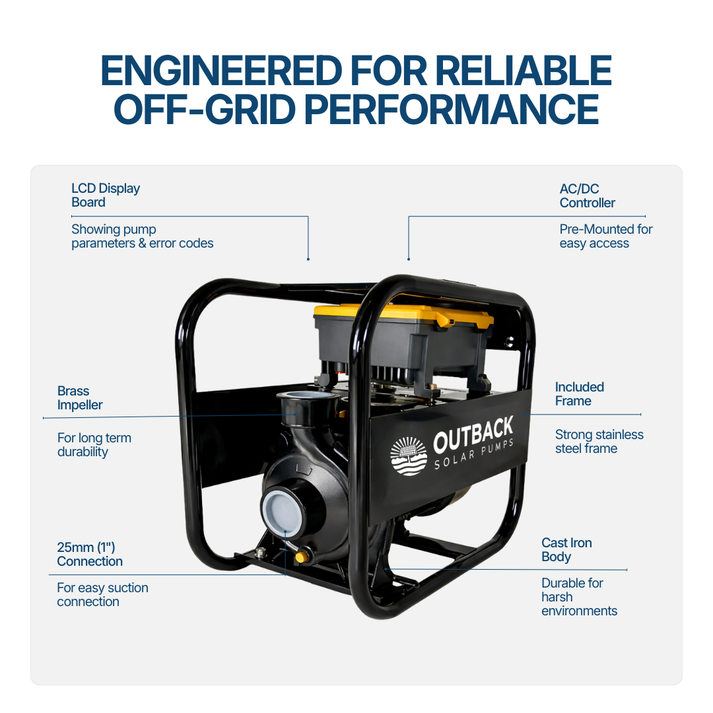

Designed for durability in harsh Australian environments, the Pathfinder pump features industrial-grade components including a brass impeller, copper windings and NSK bearings. The pump is mounted within a heavy-duty frame for protection and easy installation, providing a reliable and efficient off-grid water transfer solution
Key Features
- Powerful 800W brushless DC solar surface pump
- Maximum flow 37L/min
- Maximum head 62m
- Hybrid AC/DC MPPT pump controller
- Operates directly from solar with optional AC or generator backup
- Durable brass impeller and industrial-grade motor components
- Built-in electronic protection functions
- Heavy-duty powder-coated frame mounted pump
Kit Includes
- 1 × Surface pump and motor assembly
- 1 × Powder-coated cast iron frame
- 1 × 10m motor cable
- 1 × 40m low-level run-dry probe
- 1 × 30m tank float switch probe
- 1 × AC/DC MPPT solar pump controller
- 2 × 450W monocrystalline solar panels
- 2 × 3m MC4 solar extension cables
- 1 × 25mm foot valve with strainer
Ideal Applications
- Surface water transfer
- Tank filling from dams or tanks
- Irrigation systems
- Rural property water supply
- Livestock watering systems
- Water transfer between storage tanks
