Franklin Submersible 4" Pump - FPS-1B-12TS , 3x415V

Product Description

The standard FPS 4400 4” submersible pump features the new TRI-SEAL floating stage system. This new stage system further improves efï¬?ciency and protects against wear when pumping abrasives substances (e.g. sand). All FPS 4400 pumps are unconditionally guaranteed against sand locking in abrasive well conditions for one full year.

Features:

• 18, 25, 30, 45, 60 and 70 liters per min flow ratings.
• 300 series stainless steel hub floats with the impeller maintaining a positive seal.
• Phenolic water provides down thrust protection.
• Celcon® impeller provides high efficiency performance and abrasion resistance.
• Noryl® diffuser and disc - proven abrasion resistant material.
• Floating stage design allows impeller to float independently, increasing sealing capability.
• Removable, spring-loaded check value.
• Designed to handle water temperatures up to 120° F/ 49° C.
• Rubber discharge bearing and Ceramic shaft sleeve protect shaft and eliminate sand wear.
• Powered by Franklin Electric corrosion resistant 4” submersible motors.

Downloads:

FPS 4400 Brochure

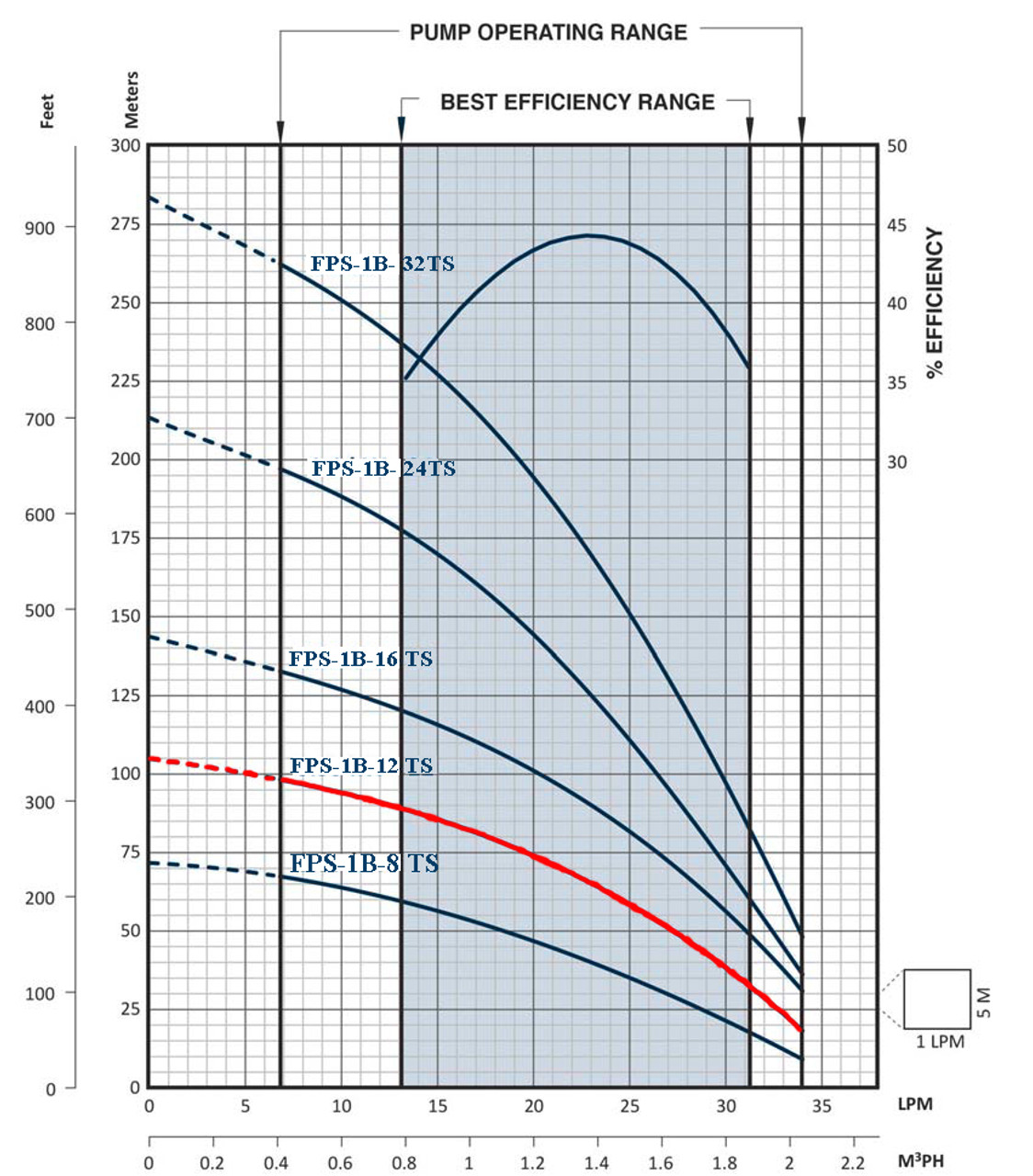

FPS 4400 4inch Tombstone Curve and Data

FPS 4400 Exploded View and Parts

FPS 4400 4inch Tri-Seal Assembly Manual
