Product Description
CMB 5-75 I-C-A-A-P-B
The Grundfos CM Booster PS is an automatic booster system for water supply in domestic and agricultural applications as well as other installations where small leakages are expected to occur. The booster system consists of a Grundfos CM pump, a 5-way valve and a pressure switch. A pressure tank must be fitted to complete the booster system. Use your own pressure tank or order one of the Grundfos GT-tanks that make a perfect fit for your booster system. The pressure band is approximately 1 bar. When the system has been connected to the pipework, it is all a matter of inserting the plug into a power supply socket, and the system is operational.
Features
CM pump
pressure tank to minimise the number of pump starts
motor protection (single-phase only)
automatic operation.
Applications The Grundfos CM Booster PS is mainly used for agricultural and light commercial water supply and similar water installations where minor leakages can be expected.
NB:
Suction lift: Max. 1 m, including suction-pipepressure loss at a liquid temperature of +20 °C. (not self-priming)
Liquid:
Pumped liquid: Water
Liquid temperature range: 0 .. 60 °C
Selected liquid temperature: 20 °C
Density at selected liquid temperature: 998.2 kg/m³
Technical:

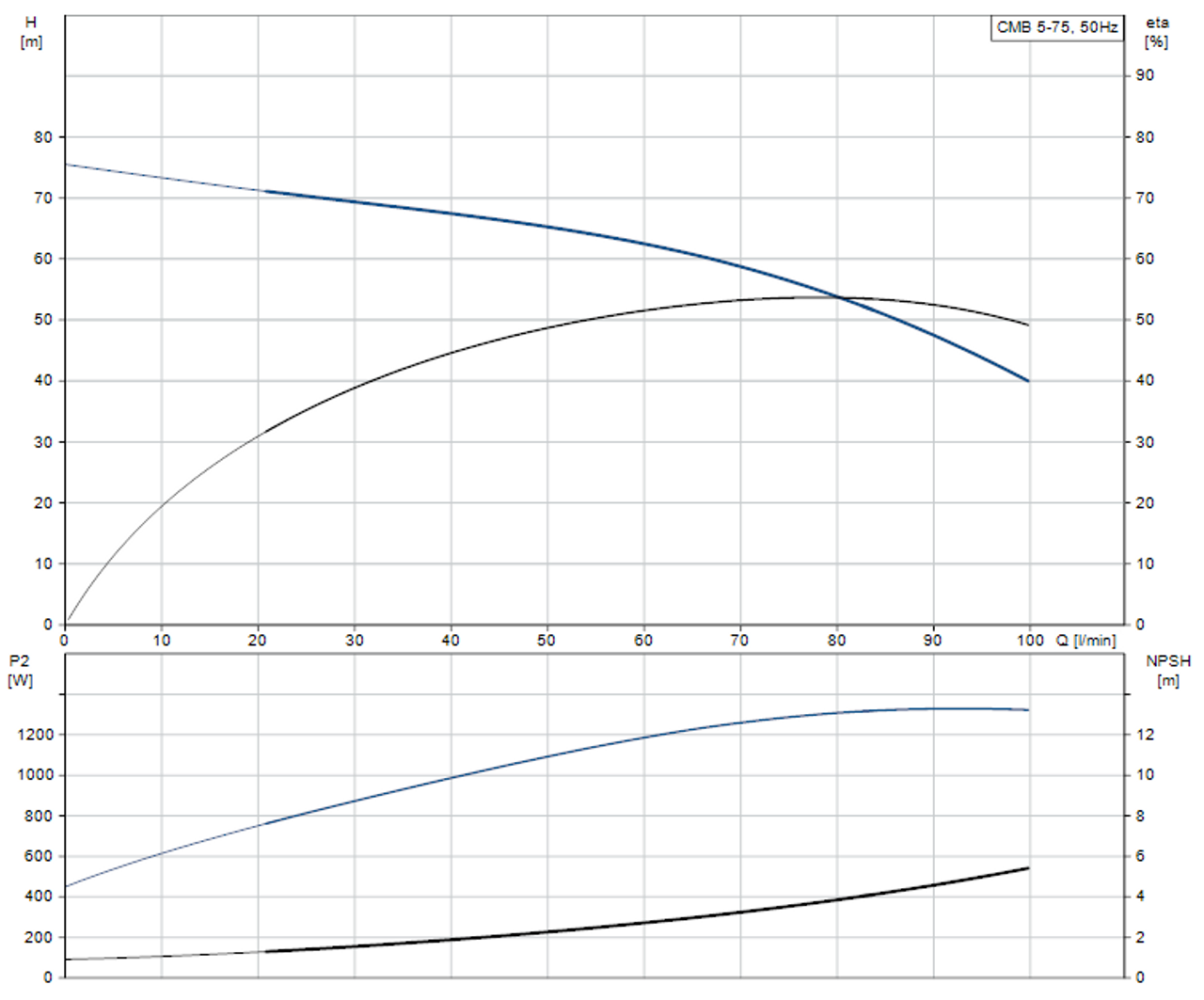

Pump speed on which pump data are based: 2900 rpm
Rated flow: 78.33 l/min
Rated head: 62.4 m
Primary shaft seal: AVBE
Approvals and markings: CE
Start pressure: Pressure Switch
Materials:
Pump housing: Stainless steel
DIN W.-Nr. 1.4301
AISI 304
Impeller: Stainless steel
DIN W.-Nr. 1.4301
AISI 304
Rubber: EPDM
Installation:
Maximum ambient temperature: 60 °C
Flange standard: WHITWORTH THREAD RP
Pump inlet: Rp 1 1/4
Electrical data:
Rated power - P2: 1.3 kW
Mains frequency: 50 Hz
Rated voltage: 1 x 220-240 V
Maximum current consumption: 8.4-8.0 A
Rated speed: 2710-2760 rpm
Enclosure class (IEC 34-5): IP55
Insulation class (IEC 85): F
Type of cable plug: AU
Mains cable: 1.5 m
Others:
Net weight: 24.2 kg
Gross weight: 34.3 kg
