Grundfos Vertical Multistage CR 5-9 , 3x415V

Product Description

CR 5-9 A-FGJ-A-E-HQQE

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

LIQUID:
Pumped liquid: Water
Liquid temperature range: -20 .. 120 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³

TECHNICAL:
Pump speed on which pump data are based: 2896 rpm
Rated flow: 96.67 l/min
Rated head: 47.7 m
Pump orientation: Vertical
Shaft seal arrangement: Single
Code for shaft seal: HQQE
Approvals: CE,EAC,UKCA,SEPRO
Approvals for drinking water: WRAS,ACS
Curve tolerance: ISO9906:2012 3B

MATERIALS:
Base: Cast iron
EN 1561 EN-GJL-200
ASTM A48-25B
Impeller: Stainless steel
EN 1.4301
AISI 304
Bearing: SIC

INSTALLATION:
Maximum ambient temperature: 60 °C
Maximum operating pressure: 25 bar
Max pressure at stated temp: 25 bar / 120 °C
25 bar / -20 °C
Type of connection: DIN / ANSI / JIS
Size of inlet connection: DN 25/32
Size of outlet connection: DN 25/32
Pressure rating for connection: PN 25
Flange rating inlet: 250 lb
Flange size for motor: FT115

ELECTRICAL DATA:
Motor standard: IEC
Motor type: 90SD
Rated power - P2: 1.5 kW
Power (P2) required by pump: 1.5 kW
Mains frequency: 50 Hz

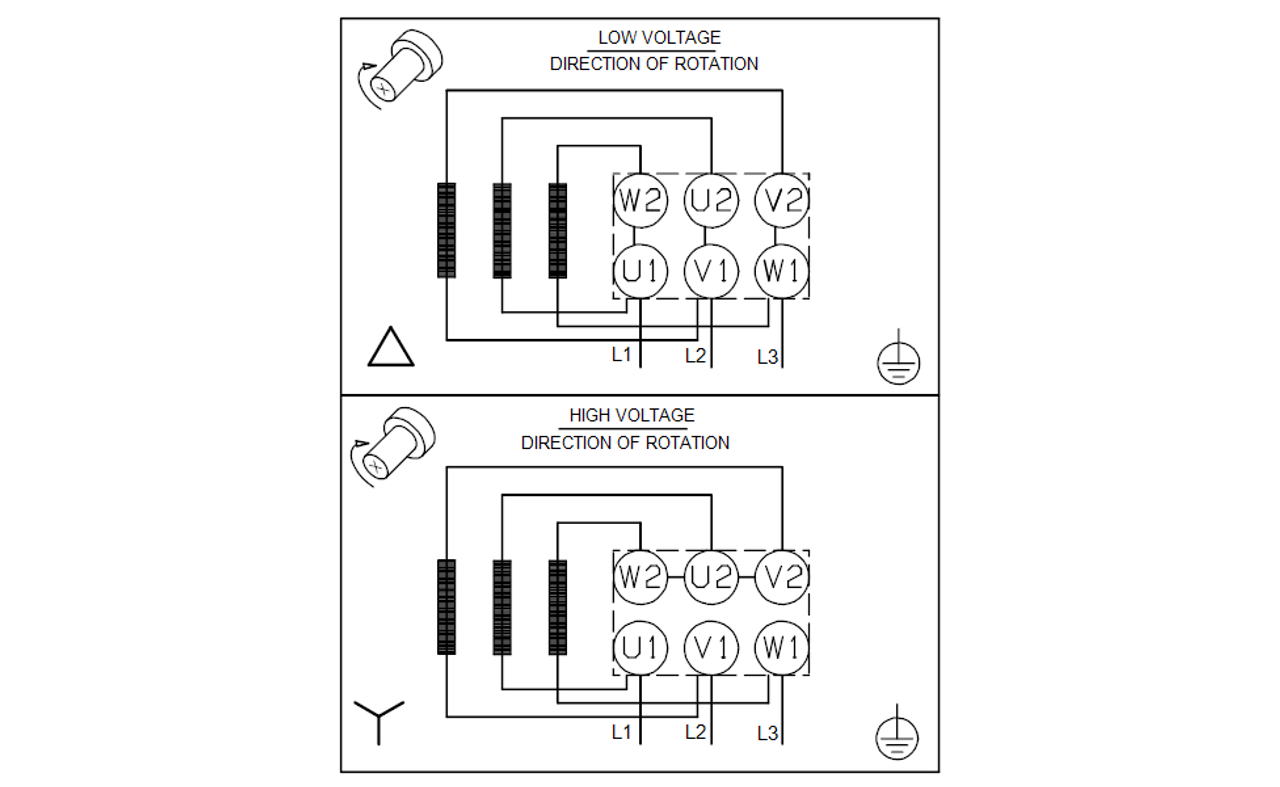

Rated voltage: 3 x 220-240D/380-415Y V
Rated current: 5.70/3.30 A
Starting current: 750-820 %
Cos phi - power factor: 0.84-0.78
Rated speed: 2890-2910 rpm
IE Efficiency class: IE3
Motor efficiency at full load: 84.2-84.2 %
Motor efficiency at 3/4 load: 86.4-84.9 %
Motor efficiency at 1/2 load: 86.0-83.0 %
Number of poles: 2
Enclosure class (IEC 34-5): 55 Dust/Jetting
Insulation class (IEC 85): F
Motor No: 85U01906

CONTROLS:
Frequency converter: NONE

OTHERS:
Terminal box position: 6
Minimum efficiency index, MEI ?: 0.57
Net weight: 38 kg
Gross weight: 42 kg
Shipping volume: 0.092 m³
