Product Description

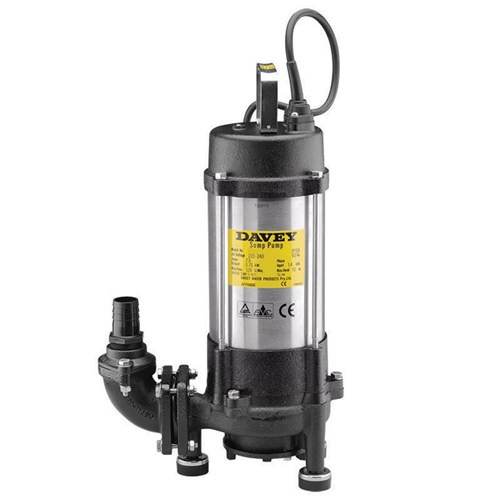

The Davey DT37G is a heavy-duty submersible grinder sewage pump designed for grey and black water pumping, sump emptying, septic effluent and sewage disposal, and wastewater containing soft solids in suspension.
The DT37G features a heavy-duty shredding and grinding ring at the inlet that reduces soft organic solids, sanitary products, thin rubber products and some textiles into a slurry for pumping. Its centrifugal open impeller helps prevent blockage by small solids in the slurry, while its high-head design allows connection to smaller discharge pipe systems and is particularly suited to pumping wastewater to pressure sewer mains.
Powered by a 3.7kW three-phase motor, the DT37G features a cast iron impeller and pump casing, high chromium steel shredding and grinding rings, and a 304 stainless steel pump shaft and motor shell. Double mechanical shaft seals operate in a captive oil bath, with a silicon carbide/ceramic seal on the pump side, while a seal sensor lead allows connection to a protection relay for early detection of seal leakage.
Key Specifications:
- Model – Davey DT37G
- Pump Type – Submersible Grinder Sewage Pump
- Operation – Manual / External Level Control
- Impeller Type – Centrifugal Open Impeller
- Grinder – Heavy-Duty Shredding and Grinding Ring
- Shredding Ring – High Chromium Steel
- Grinding Ring – High Chromium Steel
- Maximum Submergence – 20m
- Maximum Operating Temperature – 40°C
- Suitable Fluids – Sewage or Grey Water of Neutral pH with up to 20% Soft Organic Solids
- Impeller – Cast Iron FCD 400
- Pump Casing – Cast Iron FCD 400
- Outlet – Cast Iron FC200
- Outlet Connection – 2" Female BSP
- Pump Side Mechanical Seal – Silicon Carbide/Ceramic
- Motor Side Mechanical Seal – Carbon/Ceramic
- Mechanical Seals – Captive Oil Bath with Oil Seal
- Additional Seal Protection – Sand Slinger Lip Seal
- Shaft Seal Elastomer – Nitrile Rubber
- O-Rings – Nitrile Rubber
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Fasteners – 304 Stainless Steel
- Input Power – 4.5kW
- Output Power – 3.7kW
- Supply – 380–415V Three Phase, 50Hz
- Full Load Current – 7.9A
- Motor Speed – 2900rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Motor Protection – Automatic Resetting Thermal Overload
- Power Cable – 10m HO7RN-F Oil Resistant Lead with Bared Ends
- Seal Sensor – Seal Sensor Lead for Connection to a Protection Relay
- Net Weight – 51kg
- Dimensions – 570mm x 350mm x 165mm
- Warranty – 1 Year
- Applications – Grey & Black Water Pumping, Sump Emptying, Septic Effluent, Sewage Disposal, Wastewater & Pressure Sewer Systems
Downloads:
Submersible_Grinder_Datasheet_Instalation_and_Operating_Instructions
