Product Description
The Davey HM60-06T is an automatic water pressure system combining a stainless steel horizontal multistage centrifugal pump with Davey’s Torrium2 controller. It is suited to household and domestic water supply, farming and agricultural water systems, irrigation and turf watering, and automatic general water transfer.
The HM60-06T delivers a nominal flow of 60 litres per minute with a nominal operating pressure of 280kPa and maximum pump pressure of 460kPa. The pump uses 304 stainless steel casing, impellers and stages, with a 316L stainless steel pump shaft for corrosion and wear resistance.
The Torrium2 controller provides automatic pump operation and is designed to eliminate cycling while providing loss-of-prime protection and over-temperature cut-out. The single-phase Davey TEFC motor includes built-in thermal overload protection with automatic reset.
Key Specifications:
- Model – Davey HM60-06T
- Pump Type – Horizontal Multistage Centrifugal Water Pressure System
- Controller – Davey Torrium2
- Nominal Flow – 60 L/min
- Nominal Operating Pressure – 280kPa
- Maximum Pump Pressure – 460kPa
- Motor Input Power P1 – 0.85kW
- Motor Output Power P2 – 0.58kW
- Supply – 230V Single Phase, 50Hz
- Motor Speed – 2900rpm
- Run Current – 4A
- Start Current – 18A
- Suction Port – 1¼" BSP Female
- Discharge Port – 1" BSP Male
- Maximum Water Temperature – 65°C
- Pump Enclosure Class – IP55
- Insulation Class – Class F
- Net Weight – 12.7kg

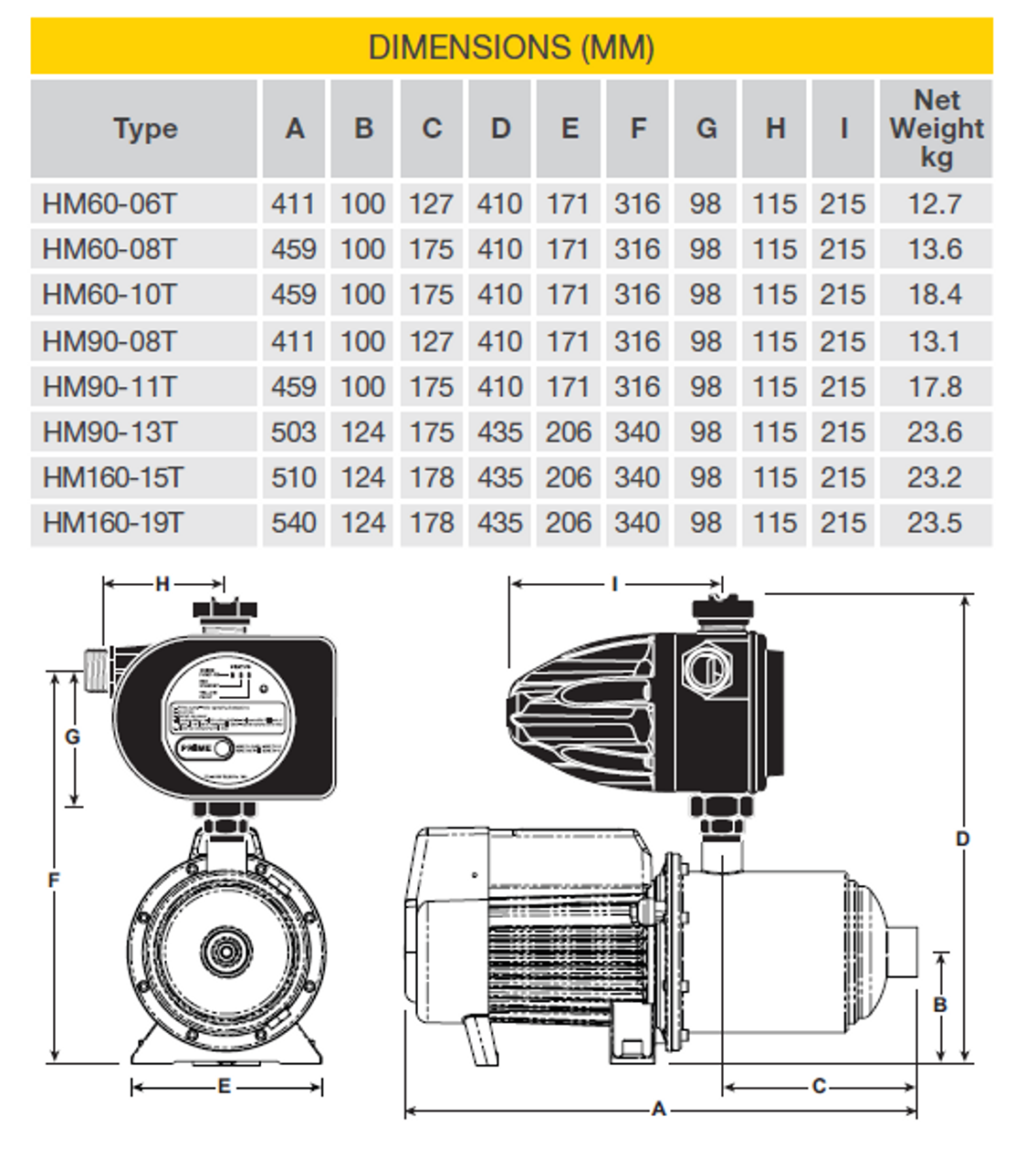

- Dimensions – 411mm (A) x 100mm (B) x 127mm (C) x 410mm (D)
- Applications – Domestic Water Supply, Agricultural Water Systems, Irrigation, Turf Watering & Automatic Water
- Transfer
