Product Description

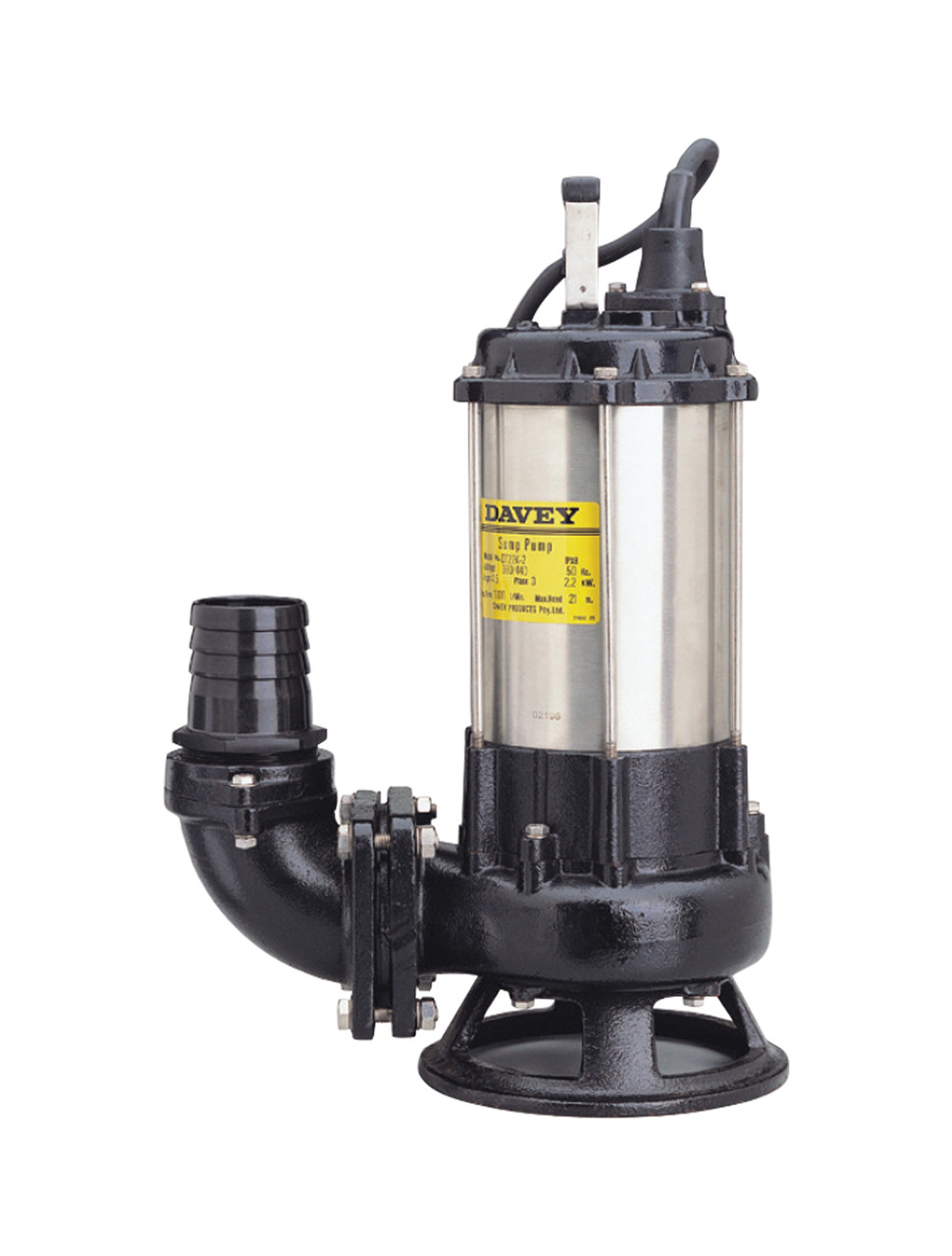

The Davey DT22K is a heavy-duty submersible shredder sewage pump designed for sewage water pumping, sump emptying, septic effluent disposal, water transfer, light slurries, factory waste and wastewater containing stringy or long soft solids in suspension.
The DT22K features an open single-channel centrifugal impeller with a cutting leading edge that cuts string-like materials and helps reduce the risk of blockage in the pump or pipework. A tungsten carbide cutting tip provides durable cutting performance, while the pump is capable of handling soft solids up to 80% of the discharge size.
Powered by a 2.2kW three-phase motor, the DT22K features a cast iron impeller, pump casing and outlet, together with a 304 stainless steel pump shaft, motor shell and fasteners. Double mechanical shaft seals operate in a captive oil bath, with a silicon carbide/ceramic seal on the pump side and a sand slinger lip seal providing additional protection.
Key Specifications:
- Model – Davey DT22K
- Pump Type – Submersible Shredder Sewage Pump
- Operation – Manual / External Level Control
- Impeller Type – Open Single-Channel Centrifugal Impeller with Cutting Leading Edge
- Cutting Tip – Tungsten Carbide
- Maximum Submergence – 20m
- Maximum Operating Temperature – 40°C
- Maximum Soft Solids – Up to 80% of Discharge Size
- Suitable Fluids – Semi-Screened Sewage or Grey Water of Neutral pH with up to 20% Small Soft Solids or 1%
- String-Like Solids
- Impeller – Cast Iron
- Diffuser Plate – Hardened Cast Iron
- Pump Casing – Cast Iron
- Outlet – Cast Iron
- Outlet Connection – 3" Female BSP
- Pump Side Mechanical Seal – Silicon Carbide/Ceramic
- Motor Side Mechanical Seal – Carbide/Ceramic
- Mechanical Seals – Captive Oil Bath with Oil Seal
- Additional Seal Protection – Sand Slinger Lip Seal
- Shaft Seal Elastomer – Nitrile Rubber
- O-Rings – Nitrile Rubber
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Handle – 304 Stainless Steel with NBR
- Fasteners – 304 Stainless Steel
- Output Power – 2.2kW
- Supply – 380–440V Three Phase, 50Hz
- Full Load Current – 4.5A
- Locked Rotor Current – 31.5A
- Starting – DOL
- Motor Speed – 2850rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Motor Protection – Automatic Resetting Thermal Overload
- Power Cable – 10m H07RN-F Oil Resistant Lead with Bared Ends
- Rail Kit – SR80
- Net Weight – 47kg
- Dimensions – 560mm x 400mm x 210mm
- Warranty – 1 Year
- Applications – Sewage Water Pumping, Sump Emptying, Septic Effluent Disposal, Water Transfer, Light Slurries, Factory Waste & Wastewater with Stringy or Long Soft Solids
