Product Description
The Davey DT15S is a high-volume single channel submersible sewage pump designed for sewage water pumping, stormwater pumping, sump emptying, septic effluent disposal, water transfer, light slurries and factory waste.
The DT15S features an open, single-channel centrifugal impeller designed to handle soft solids in suspension with reduced susceptibility to blockage while providing higher head capability. Its heavy-duty construction includes a cast iron impeller, pump casing and outlet, with a 304 stainless steel pump shaft, motor shell, handle and fasteners.
Powered by a 1.5kW three-phase motor, the DT15S is designed for sewage, greywater and wastewater applications. It features automatic resetting thermal overload protection, double mechanical shaft seals in an oil bath and is supplied with a 10 metre HO7RN-F oil-resistant power lead with bared ends.
Key Specifications:
- Model – Davey DT15S
- Pump Type – Single Channel Submersible Sewage Pump
- Operation – Manual / External Level Control
- Impeller Type – Open Single Channel Centrifugal
- Maximum Submergence – 25m
- Maximum Operating Temperature – 40°C
- Maximum Soft Solids – Up to 80% of Discharge Size
- Suitable Fluids – Semi-Screened Sewage or Grey Water of Neutral pH
- Impeller – Cast Iron
- Pump Casing – Cast Iron
- Outlet – Cast Iron
- Outlet Connection – 3" Female BSP
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Handle – 304 Stainless Steel
- Fasteners – 304 Stainless Steel
- Pump Side Shaft Seal – Silicon Carbide/Ceramic
- Motor Side Shaft Seal – Carbide/Ceramic
- Motor Protection – Automatic Resetting Thermal Overload
- Output Power – 1.5kW
- Supply – 380–415V Three Phase, 50Hz
- Full Load Current – 3.0A
- Locked Rotor Current – 22.0A
- Starting – DOL
- Motor Speed – 2850rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Power Cable – 10m HO7RN-F Oil Resistant Lead with Bared Ends
- Net Weight – 37kg

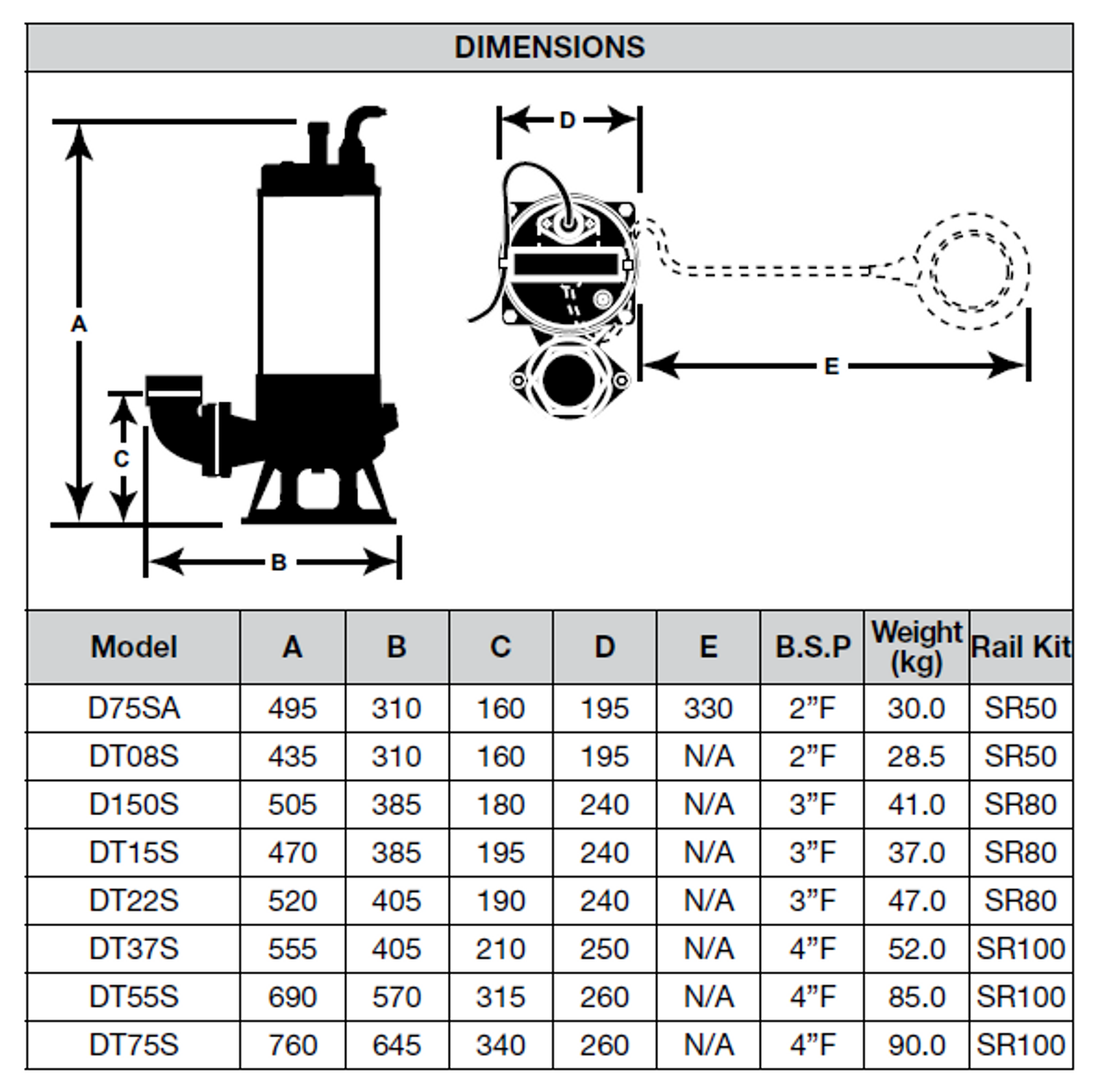

- Dimensions – 470mm x 385mm x 195mm
- Rail Kit – SR80
- Warranty – 1 Year
- Applications – Sewage Water, Stormwater, Sump Emptying, Septic Effluent Disposal, Water Transfer, Light Slurries & Factory Waste
Downloads:
Single_Channel_Sewage_Pump_Datasheet
Single_Channel_Sewage_Pump_Datasheet_Installation_and_Operating_Instructions
