Product Description
The Davey CY70-75/A is a single stage stainless steel centrifugal transfer pump designed for clean, non-volatile liquids without fibres or solids. Part of the Davey CY Series, it is particularly suited to dairy washdown applications, along with small-scale irrigation, water transfer, washing systems and pressure boosting.
The pump features a closed vane 304 stainless steel impeller, 304 stainless steel casing and diffuser, and a 316 stainless steel pump shaft for corrosion resistance and durability. Its stainless steel hydraulic construction allows continuous water temperatures up to 80°C, making it suitable for demanding washdown and hot water transfer applications.
The CY70-75/A uses a two-pole TEFC motor with IP55 enclosure protection, Class F insulation and built-in automatically resetting thermal overload protection. The motor and pump are designed for frequent starts and use a permanently split capacitor design. It is supplied with a 1.8 metre power lead with bare wire termination.
The pump operates on 220–240V single-phase power at 50Hz, with 0.75kW output power and 1.10kW input power. It delivers flows up to 150 L/min and a maximum total head of 27 metres, with a maximum suction lift of 7 metres. The pump features a 32mm (1 1/4") female BSP inlet and 25mm (1") female BSP outlet.
Key Specifications:
Model – Davey CY70-75/A
Product Type – Single Stage Stainless Steel Centrifugal Transfer Pump
Pump Design – Single Stage, Closed Vane Impeller
Number of Impellers – 1
Maximum Flow – 150 L/min
Maximum Total Head – 27 Metres
Maximum Suction Lift – 7 Metres
Supply Voltage – 220–240V
Supply Frequency – 50Hz
Phase – Single Phase
Motor Speed – 2900rpm
Input Power (P1) – 1.10kW
Output Power (P2) – 0.75kW
Rated Current – 4.5A
Motor Type – TEFC, 2 Pole
Motor Enclosure – IP55
Insulation Class – Class F
Motor Starting – Permanently Split Capacitor
Motor Protection – Automatic Reset Thermal Overload
Inlet – 32mm (1 1/4") Female BSP
Outlet – 25mm (1") Female BSP
Maximum Pump Casing Pressure – 800kPa
Water Temperature Range – -15°C to 80°C
Maximum Continuous Water Temperature – 80°C
Maximum Ambient Temperature – 55°C
Pump Casing – 304 Stainless Steel
Impeller – 304 Stainless Steel
Diffuser – 304 Stainless Steel
Pump Shaft – 316 Stainless Steel
Impeller Lock Nut – 304 Stainless Steel
Mechanical Seal – Carbon / Ceramic
Seal Spring – 304 Stainless Steel
Seal Bellows – EPDM
O-Rings – EPDM
Neck Ring – Teflon
Motor Shell – Aluminium
Motor Finish – Polyester
Power Lead – 1.8 Metres
Power Connection – Bare Wire Termination

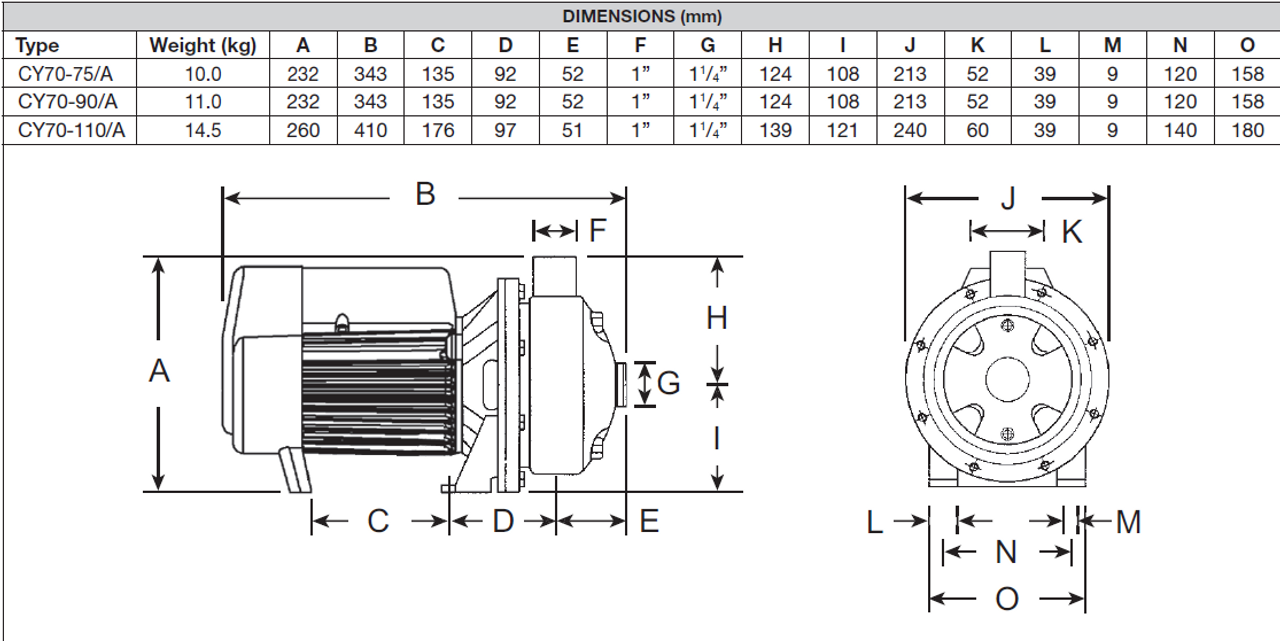

Length – 343mm
Height – 232mm
Net Weight – 10kg
Warranty – 2 Years
Applications – Dairy Washdown, Small-Scale Irrigation, Water Transfer, Washing Systems & Pressure Boosting
