Product Description
The Davey Dynaflo 62103 is a single stage centrifugal water transfer pump designed for water supply and general water transfer applications. It is suitable for tank filling, sprinkler systems, garden reticulation, dairy washdown, factory floor cleaning and irrigation in rural, agricultural and commercial installations.
The pump features a robust corrosion-resistant glass-filled Noryl casing with metal-reinforced inlet and outlet ports, a glass-filled polycarbonate impeller and a 304 stainless steel pump shaft. Its carbon/ceramic mechanical seal provides reliable operation, while the O-ring sealed hand-tightened priming plugs allow easier priming and maintenance.
The Dynaflo 62103 uses a Davey-manufactured two-pole TEFC motor with IP56 enclosure protection and Class F insulation. The pump and motor are designed for frequent starts, with double-contact sealed bearings and corrosion-resistant motor mounting feet for dependable operation.
The pump operates on 380–415V three-phase power at 50Hz, with 1.6kW output power and 2.1kW input power. It delivers flows up to 315 L/min and a maximum total head of 31.6 metres, with a maximum suction head of 7 metres. The pump features a 40mm (1 1/2") female BSP inlet and 32mm (1 1/4") female BSP outlet.
Key Specifications:
- Model – Davey Dynaflo 62103
- Product Type – Single Stage Centrifugal Water Transfer Pump
- Pump Design – Single Stage Centrifugal
- Maximum Flow – 315 L/min
- Maximum Total Head – 31.6 Metres
- Maximum Suction Head – 7 Metres
- Supply Voltage – 380–415V
- Supply Frequency – 50Hz
- Phase – Three Phase
- Input Power (P1) – 2.1kW
- Output Power (P2) – 1.6kW
- Full Load Current – 3.7A
- Locked Rotor Current – 24A
- Motor Type – TEFC, 2 Pole
- Motor Enclosure – IP56
- Insulation Class – Class F
- Motor Starting – Direct On Line (DOL)
- Inlet – 40mm (1 1/2") Female BSP
- Outlet – 32mm (1 1/4") Female BSP
- Maximum Casing Pressure – 50m Head
- Water Temperature Range – 1°C to 50°C
- Maximum Short-Term Water Temperature – 70°C for 10 Minutes
- Pump Casing – Glass Filled Noryl
- Impeller – Glass Filled Polycarbonate
- Pump Shaft – 304 Stainless Steel
- Mechanical Seal – Carbon / Ceramic
- Seal Elastomer – Nitrile Rubber
- Pump O-Rings – Nitrile Rubber
- Motor Shell – Aluminium
- Motor Finish – Baked Enamel
- Motor Mounting Feet – Xenoy Plastic
- Motor Through Bolts – 304 Stainless Steel with Brass Nuts
- Motor Fan – Polypropylene

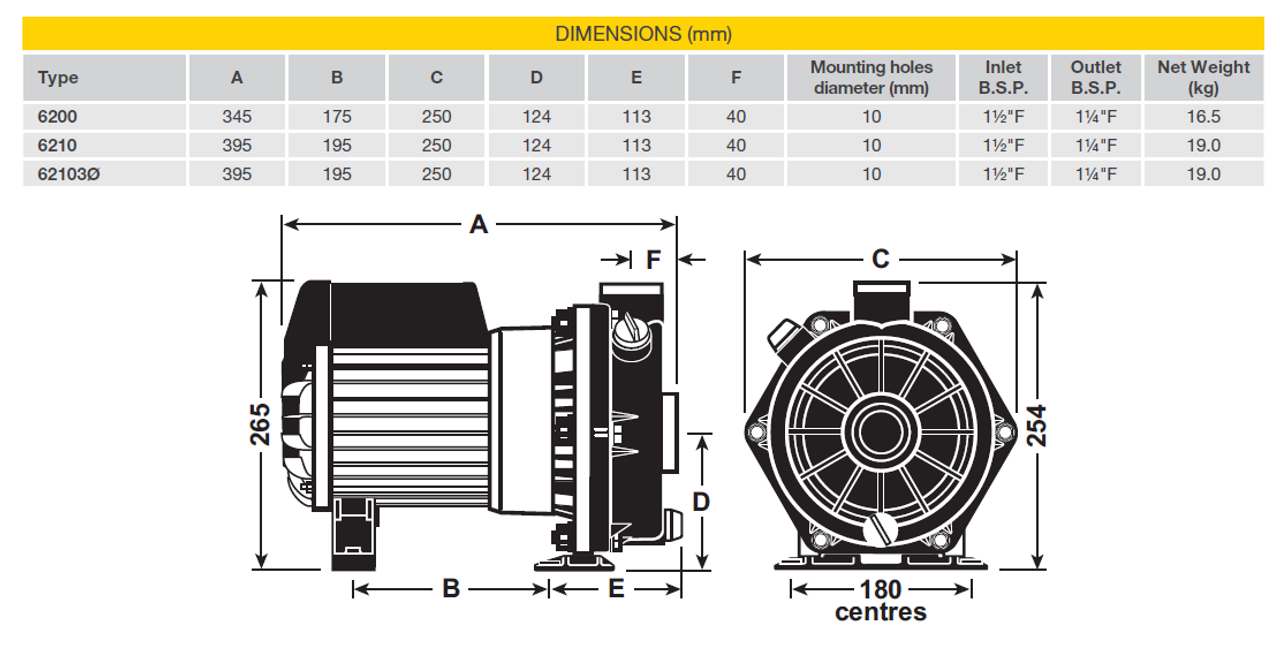

- Length – 395mm
- Net Weight – 19kg
- Warranty – 2 Years
- Applications – Water Supply, Tank Filling, Sprinkler Systems, Garden Reticulation, Dairy Washdown, Factory Floor Cleaning & General Water Transfer
