  • D40A Product Photo
  • D40A Performance Curve

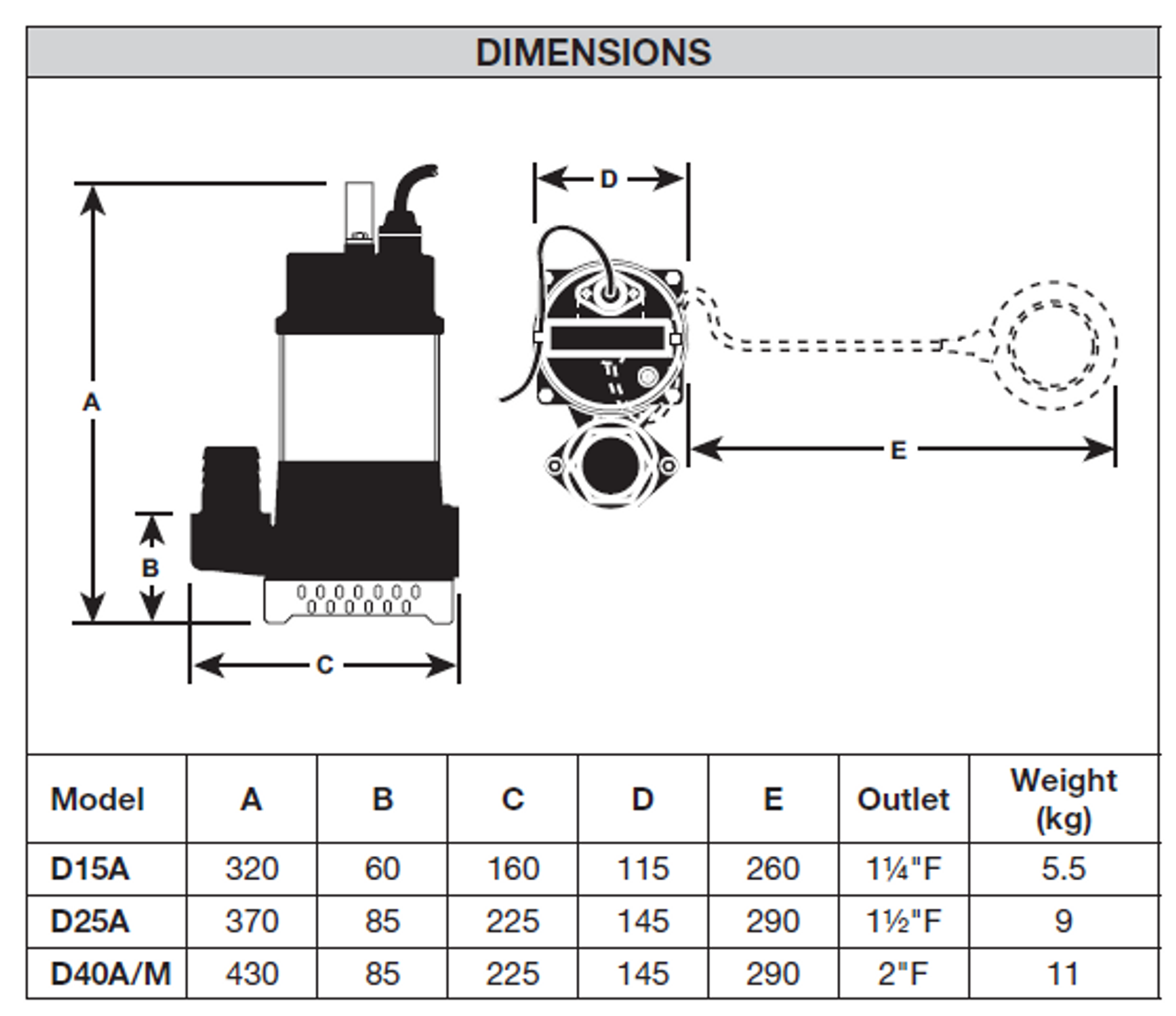

  • D40A Dimensional Drawing

    • Davey Dewatering Pump D40A c/w Float Switch

    $672.53
    SKU:
    D40A
    DAVEY OFFLINE ORDER ONLY:
    Due to new DAVEY sales requirements - Purchases must be made OFFLINE. Call us on (08) 9350 9090 or email sales@pumpswa.com.au
    Phase:
    Single , 240v
    KW:
    0.4
    Outlet:
    50 mm , 2Â? Inch BSP(M)
    Max Flow:
    240 LPM
    Max Head:
    12 Metres
    Max Submergence:
    10 Metres
    Max Water Temperature:
    50°C
    Soft Organic Solid:
    up to 10% small soft solids or 1% fine solids
    Applications:
    Site Dewatering , Swimming pool drainage , stormwaater pumping

    Product Description

    Applications:

    • Dewatering of cellars, garages, ditches, pits & ponds

    • Pumping clean or slightly dirty water

    • Sump emptying

    • Decorative water features



    Benefits:

    Open impeller, centrifugal design

    • Able to pump small soft solids in suspension

    • Less susceptible to blockage Double mechanical shaft seal in oil bath with hard faced silicon

       Carbide /ceramic seal on pump side (D15 models have single seals)

    • Added motor protection

    • Long service life Sand slinger lip seal

    • Added protection

    • Long service life Corrosive resistant 304 stainless steel motor shell and strainer

    • Long service life

    • Attractive, lasting appearance High quality paint finish

    • Long service life

    • Attractive lasting appearance Automatic resetting thermal overload

    • Protected against overloading HO7RNF oil resistant leads, 10 meters long with 3 pin power plug

    • Easy to connect to power supply

    • Longer life in dirty water



    Downloads :

    D15A_D25A_D40A_D40M_Datasheet

    DA_DM_Submersible_Float_Switch

    D15A_D25A_D40A_D40M_Installation_and_Operating_Instructions

    Other Details

    Warranty 2 Years

    Product Videos

    Custom Field

    DAVEY OFFLINE ORDER ONLY Due to new DAVEY sales requirements - Purchases must be made OFFLINE. Call us on (08) 9350 9090 or email sales@pumpswa.com.au
    Phase Single , 240v
    KW 0.4
    Outlet 50 mm , 2Â? Inch BSP(M)
    Max Flow 240 LPM
    Max Head 12 Metres
    Max Submergence 10 Metres
    Max Water Temperature 50°C
    Soft Organic Solid up to 10% small soft solids or 1% fine solids
    Applications Site Dewatering , Swimming pool drainage , stormwaater pumping
