Product Description
The Davey D75A is a heavy-duty submersible dewatering pump designed for sump emptying, septic water disposal, water transfer and pumping neutral, non-aggressive factory wastewater. It is suitable for clean or grey water containing small soft solids.
The D75A features an automatic float switch for unattended start and stop operation. Its open centrifugal impeller can handle soft solids in suspension and is designed to reduce the risk of blockage, while the 304 stainless steel shaft, motor shell and fasteners provide corrosion resistance and durability.
With a maximum flow of approximately 450 L/min and maximum head of approximately 15 metres, the D75A provides strong performance for dewatering and water transfer applications. The single-phase motor includes automatic resetting thermal overload protection and is supplied with a 10 metre oil-resistant power lead.
Key Specifications:
- Model – Davey D75A
- Pump Type – Submersible Dewatering Pump
- Operation – Automatic Float Switch
- Maximum Flow – Approximately 450 L/min
- Maximum Head – Approximately 15m
- Maximum Soft Solids – 10mm
- Maximum Submergence – 25m
- Maximum Operating Temperature – 40°C
- Impeller Type – Open Centrifugal
- Impeller – Cast Iron
- Outlet Connection – 2" Female BSP
- Pump Casing – Cast Iron
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Handle – 304 Stainless Steel
- Fasteners – 304 Stainless Steel
- Motor Protection – Automatic Resetting Thermal Overload
- Output Power – 0.75kW
- Supply – 220–240V Single Phase
- Full Load Current – 7.5A
- Motor Speed – 2850rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Power Cable – 10m HO7RN-F Oil Resistant Lead
- Net Weight – 24kg

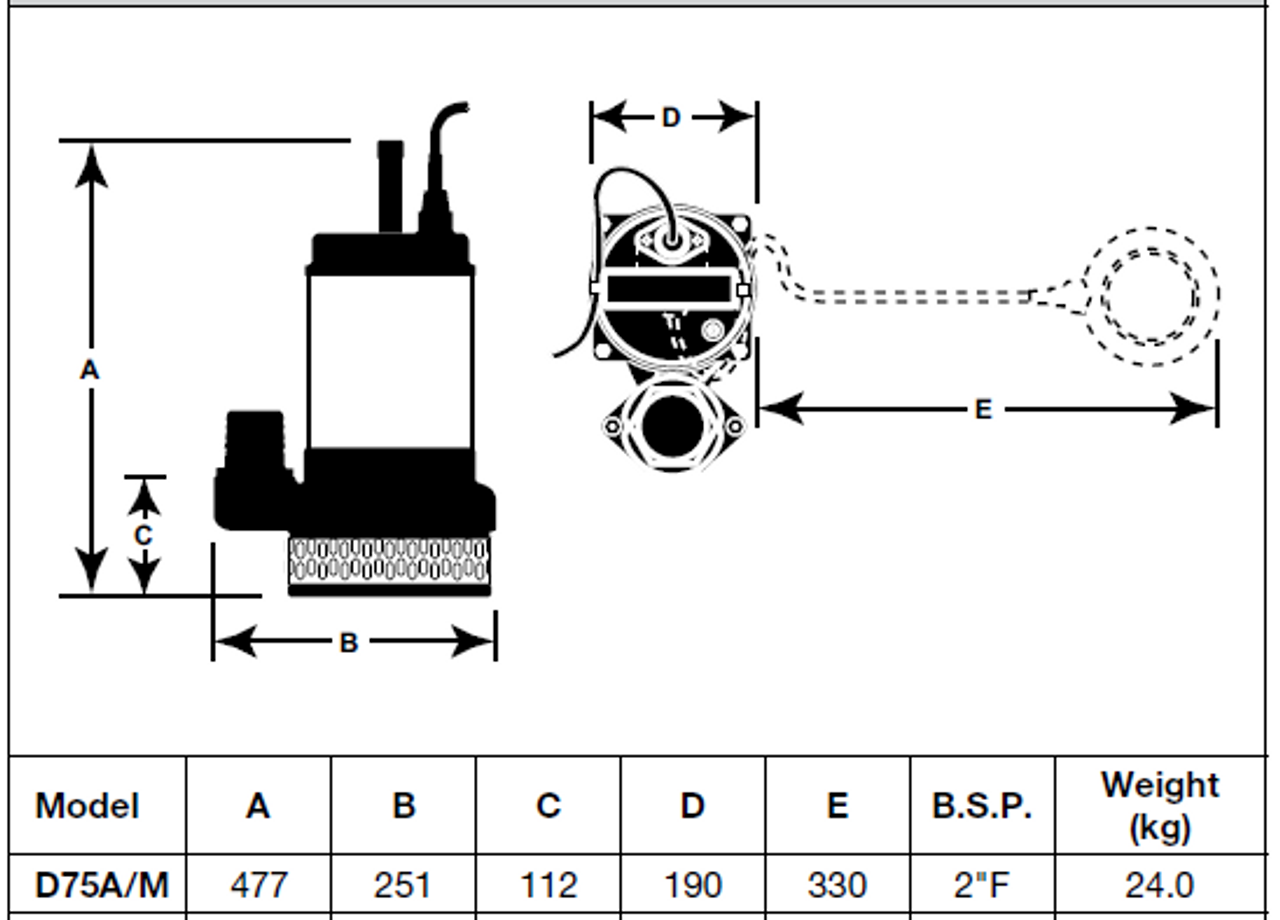

- Dimensions – 477mm Overall Height x 251mm Width
- Warranty – 1 Year
- Applications – Sump Emptying, Septic Water Disposal, Water Transfer & Neutral Non-Aggressive Factory Wastewater
