Product Description
The Davey DC10A is a compact submersible dewatering sump pump designed for domestic fountains and waterfalls, sump emptying, emergency flood relief, water transfer and partially submerged applications. It is suitable for clean water containing small soft organic solids up to 4mm.
The DC10A features a preset float switch for automatic start and stop operation. Its open centrifugal impeller can handle small soft solids in suspension and is designed to reduce the risk of blockage. The double-case design directs discharge water past the internal motor shell for improved motor cooling and allows partially submerged operation.

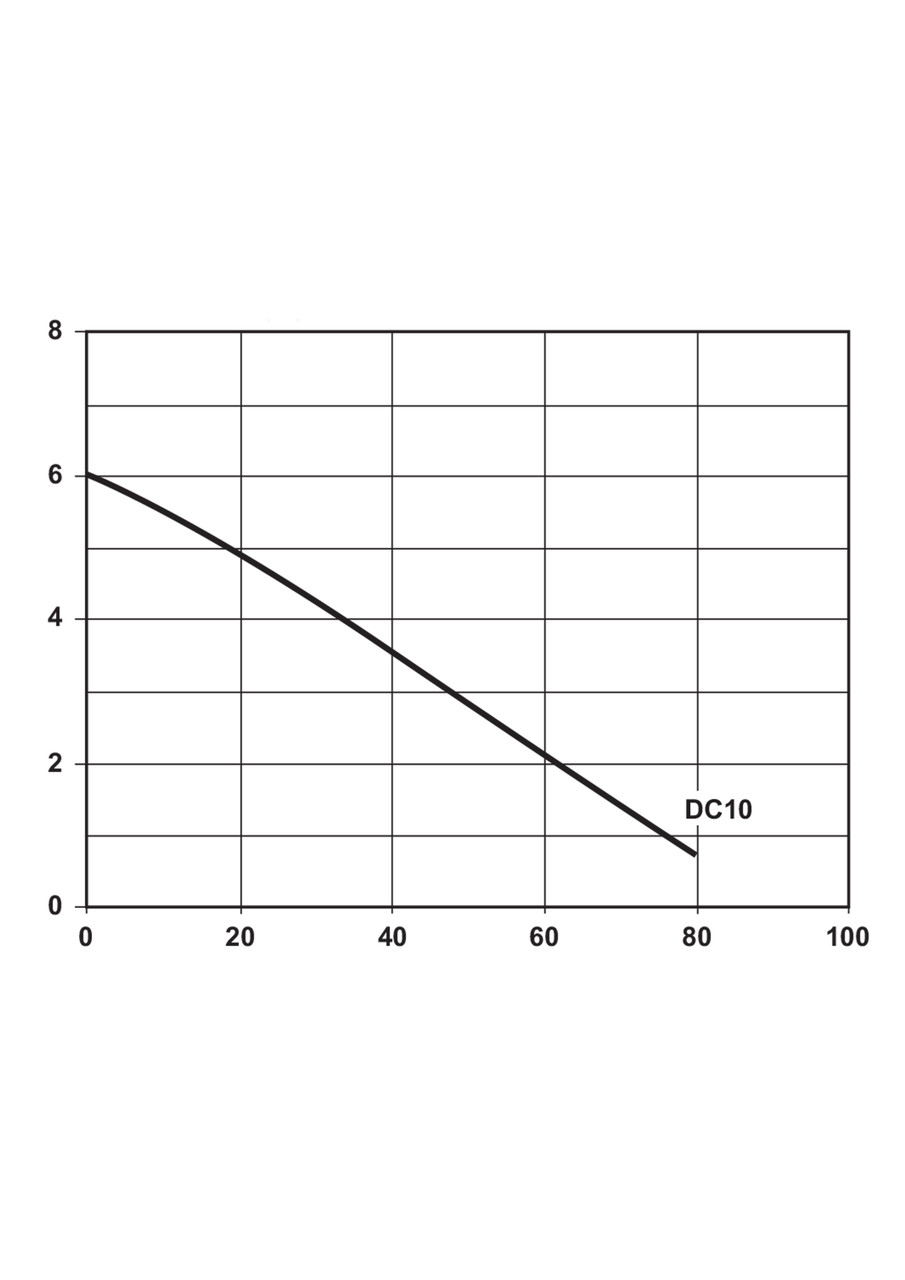

With a maximum flow of 80 L/min and maximum head of 6 metres, the DC10A provides reliable performance for domestic drainage and water transfer applications. The single-phase motor includes automatic resetting thermal overload protection and is supplied with a 10 metre oil-resistant power lead and 3-pin plug.
Key Specifications:
- Model – Davey DC10A
- Pump Type – Domestic Submersible Dewatering Sump Pump
- Operation – Automatic Float Switch
- Maximum Flow – 80 L/min
- Maximum Head – 6m
- Maximum Soft Solids – Less Than 4mm
- Maximum Submergence – 10m
- Maximum Operating Temperature – 50°C
- Impeller Type – Open Centrifugal
- Impeller – Polycarbonate
- Outlet Connection – 1" Male BSP
- Suction Strainer – ABS
- Outer Casing – ABS
- Pump Casing – Glass-Filled ABS
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Motor Protection – Automatic Resetting Thermal Overload
- Rated Power – 0.1kW
- Supply – 220–240V Single Phase, 50Hz
- Full Load Current – 1.0A
- Motor Speed – 2850rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Power Cable – 10m HO7RN-F Oil Resistant Lead
- Plug – 3-Pin Plug
- Net Weight – 4kg
- Dimensions – 320mm Overall Height x 137mm Width
- Warranty – 2 Years
- Applications – Domestic Fountains, Waterfalls, Sump Emptying, Emergency Flood Relief & Water Transfer
