Product Description
The Davey D15A is a submersible dewatering sump pump designed for dewatering cellars, garages, ditches, pits and ponds, pumping clean or slightly dirty water, sump emptying and decorative water features.
The D15A features a preset float switch for automatic start and stop operation and an open centrifugal impeller designed to handle small soft solids in suspension with reduced susceptibility to blockage. Its 304 stainless steel motor shell and strainer provide corrosion resistance and durability.
With a maximum flow of approximately 150 L/min and maximum head of approximately 7.5 metres, the D15A provides reliable performance for general dewatering and drainage applications. The single-phase motor includes automatic resetting thermal overload protection and is supplied with a 10 metre oil-resistant power lead and 3-pin plug.
Key Specifications:
- Model – Davey D15A
- Pump Type – Submersible Dewatering Sump Pump
- Operation – Automatic Float Switch
- Maximum Flow – Approximately 150 L/min
- Maximum Head – Approximately 7.5m
- Maximum Submergence – 10m
- Maximum Operating Temperature – 50°C
- Impeller Type – Open Centrifugal
- Impeller – Polycarbonate
- Outlet Connection – 1¼" Female BSP
- Pump Body – Cast Iron
- Motor Shell – 304 Stainless Steel
- Strainer – 304 Stainless Steel
- Pump Shaft – Stainless Steel
- Motor Protection – Automatic Resetting Thermal Overload
- Rated Power – 150W
- Supply – 240V Single Phase, 50Hz
- Run Current – 1.5A
- Motor Speed – 2850rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Power Cable – 10m HO7RN-F Oil Resistant Lead
- Plug – 3-Pin Plug
- Net Weight – 5.5kg

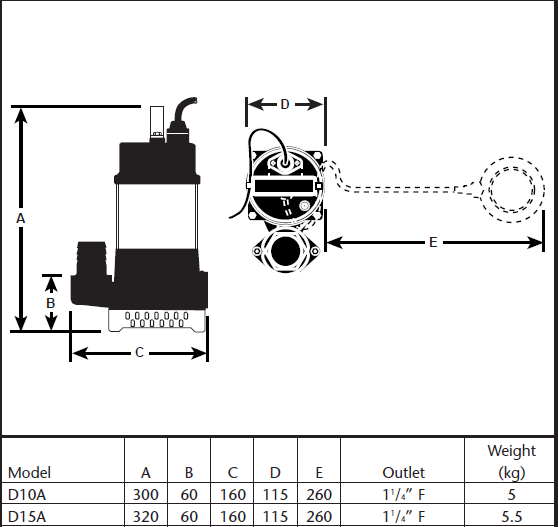

- Dimensions – 320mm Overall Height x 160mm Width
- Warranty – 2 Years
- Applications – Dewatering Cellars, Garages, Ditches, Pits & Ponds, Sump Emptying & Decorative Water Features
