Product Description

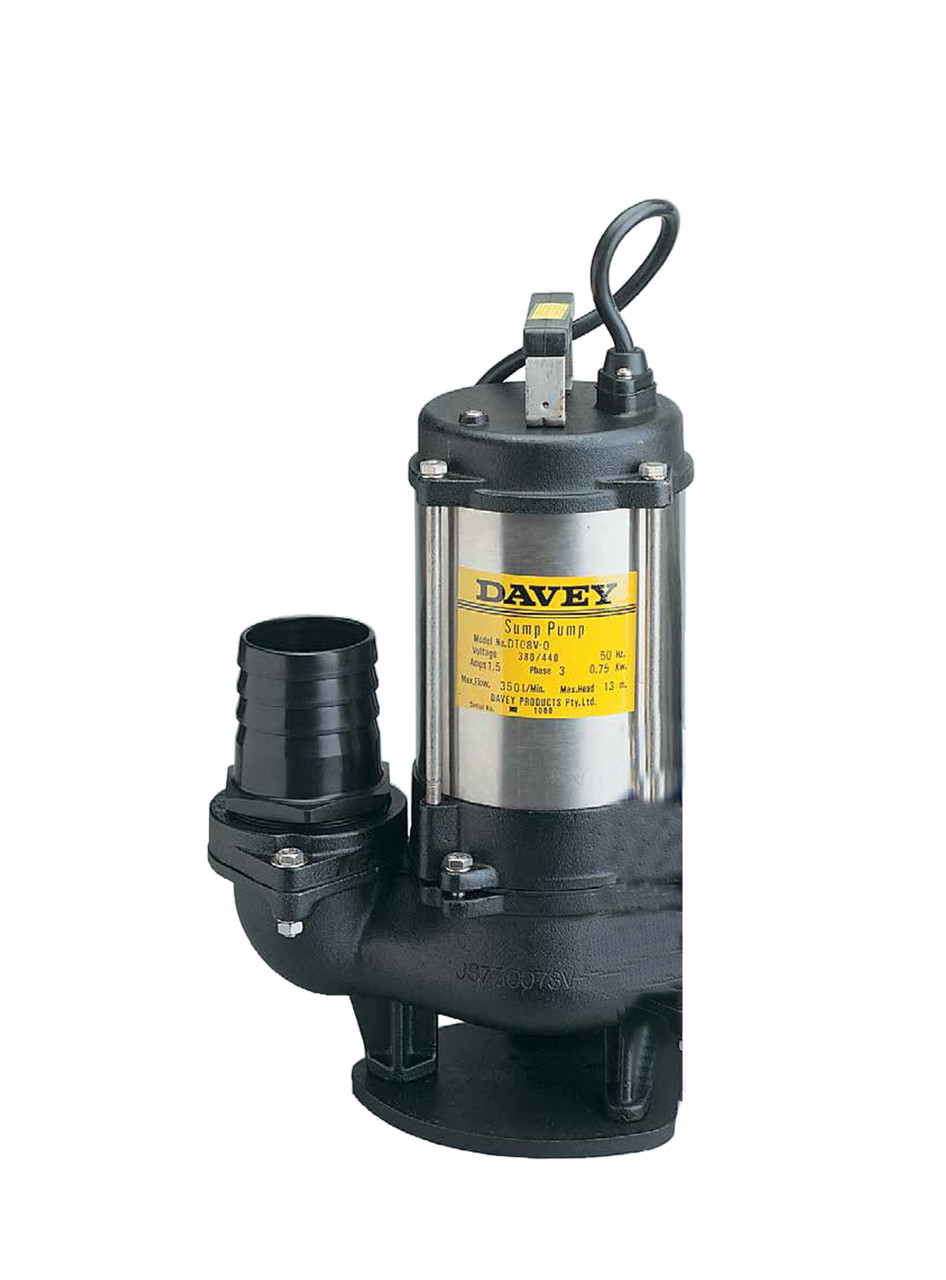

The Davey D75VA is a submersible vortex pump designed for grey water pumping, sump emptying, septic effluent disposal, water transfer and wastewater containing soft solids in suspension.
The D75VA features a float switch for automatic operation and an open vortex centrifugal impeller designed to handle soft solids with reduced susceptibility to blockage. Heavy-duty construction includes a cast iron impeller, pump casing and outlet, with a 304 stainless steel pump shaft, motor shell, handle and fasteners.
With capacities up to 600 L/min and heads up to 8.5 metres, the D75VA is designed for demanding grey water, sewage and effluent applications. Its 0.75kW single-phase motor features double mechanical shaft seals in a captive oil bath and is supplied with a 10 metre HO7RN-F oil-resistant lead with Australian plug.
Key Specifications:
- Model – Davey D75VA
- Pump Type – Submersible Vortex Grey Water / Sewage Pump
- Operation – Automatic Float Switch
- Maximum Flow – 600 L/min
- Maximum Head – 8.5m
- Maximum Soft Solids – 46mm O.D.
- Maximum Submergence – 20m
- Maximum Operating Temperature – 40°C
- Suitable Fluids – Sewage or Grey Water of Neutral pH with up to 20% Soft Organic Solids
- Impeller Type – Open Vortex Centrifugal
- Impeller – Cast Iron
- Pump Casing – Cast Iron
- Outlet – Cast Iron
- Outlet Connection – 3" Female BSP
- Pump Side Mechanical Seal – Silicon Carbide/Ceramic
- Motor Side Mechanical Seal – Carbon/Ceramic
- Mechanical Seals – Captive Oil Bath with Oil Seal
- Shaft Seal Elastomer – Nitrile Rubber
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Handle – 304 Stainless Steel
- Fasteners – 304 Stainless Steel
- Output Power – 0.75kW
- Supply – 220–240V Single Phase, 50Hz
- Full Load Current – 7.5A
- Locked Rotor Current – 22.5A
- Starting – CSCR
- Motor Speed – 2850rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Power Cable – 10m HO7RN-F Oil Resistant Lead
- Plug – Australian Plug
- Net Weight – 31kg

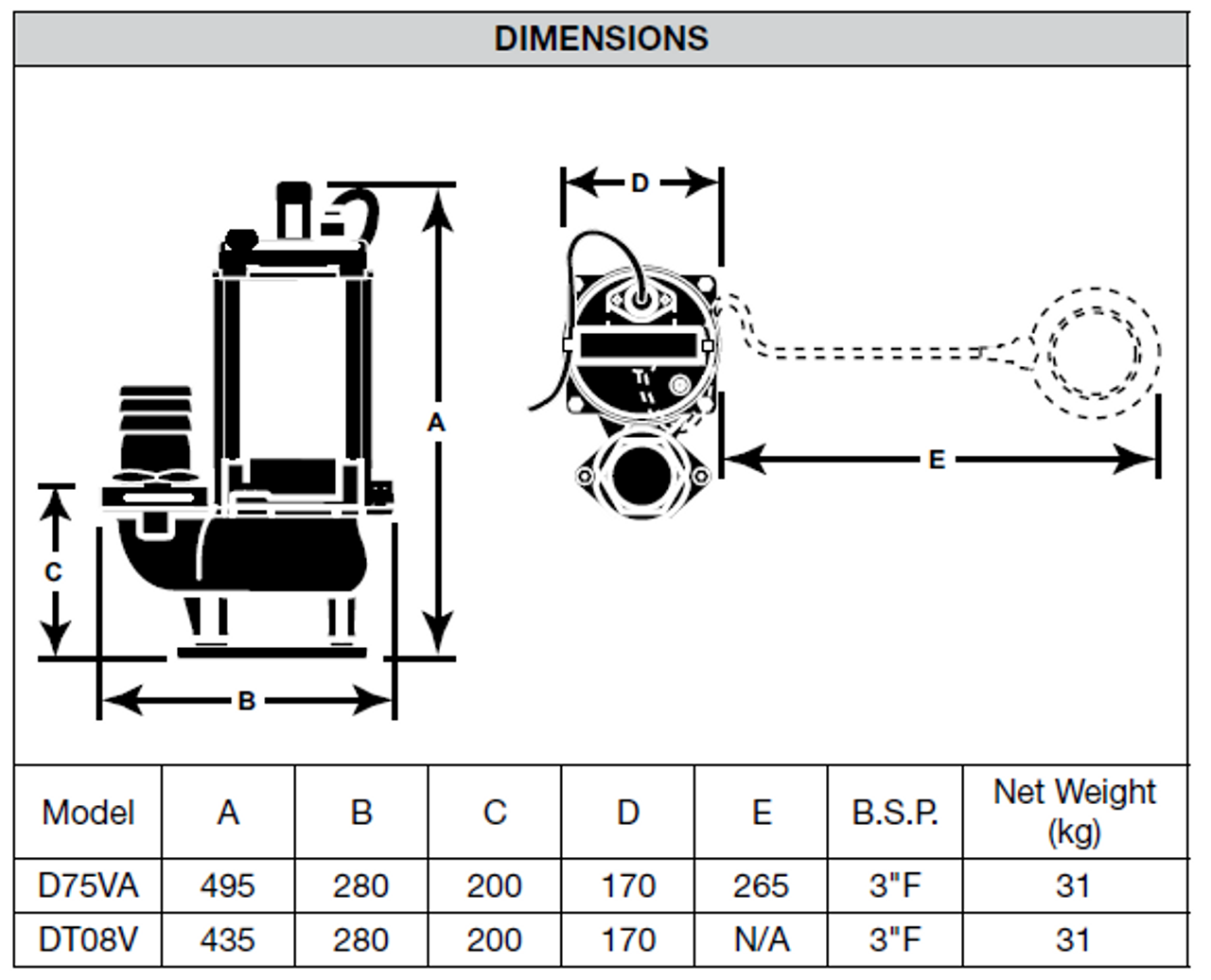

- Dimensions – 495mm x 280mm x 200mm
- Warranty – 1 Year
- Applications – Grey Water Pumping, Sump Emptying, Septic Effluent Disposal, Water Transfer & Wastewater with Soft Solids
