Product Description
The Davey D25VA is a semi-vortex submersible pump designed for grey water pumping, sump emptying, septic effluent disposal, water transfer, light slurries and factory waste.
The D25VA features an automatic float switch for start and stop operation as the water level changes. Its semi-vortex open centrifugal impeller is designed to handle soft solids in suspension with reduced susceptibility to blockage. Heavy-duty construction includes a polycarbonate impeller, cast iron pump casing, 304 stainless steel pump shaft, motor shell, handle and fasteners.
With a maximum flow of 200 L/min and maximum head of 6.5 metres, the D25VA is suited to grey water, effluent and dewatering applications. It features double mechanical shaft seals, automatic resetting thermal overload protection and a 10 metre HO7RN-F oil-resistant lead with 3-pin plug.
Key Specifications:
- Model – Davey D25VA
- Pump Type – Semi-Vortex Submersible Grey Water Pump
- Operation – Automatic Float Switch
- Maximum Flow – 200 L/min
- Maximum Head – 6.5m
- Maximum Soft Solids – 25mm O.D.
- Maximum Submergence – 12m
- Maximum Operating Temperature – 50°C
- Suitable Fluids – Clean or Grey Water of Neutral pH
- Impeller Type – Semi-Vortex Open Centrifugal
- Impeller – Polycarbonate
- Pump Casing – Cast Iron
- Pump Side Mechanical Seal – Silicon Carbide/Ceramic in Oil Bath
- Motor Side Mechanical Seal – Carbon/Ceramic
- Shaft Seal Elastomer – Nitrile Rubber
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Handle – 304 Stainless Steel
- Fasteners – 304 Stainless Steel
- Motor Protection – Automatic Resetting Thermal Overload
- Output Power – 250W
- Supply – 220–240V Single Phase, 50Hz
- Start Current – 12.0A
- Run Current – 2.0A
- Outlet Connection – 1½" Female BSP
- Power Cable – 10m HO7RN-F Oil Resistant Lead
- Plug – 3-Pin Plug
- Net Weight – 9kg

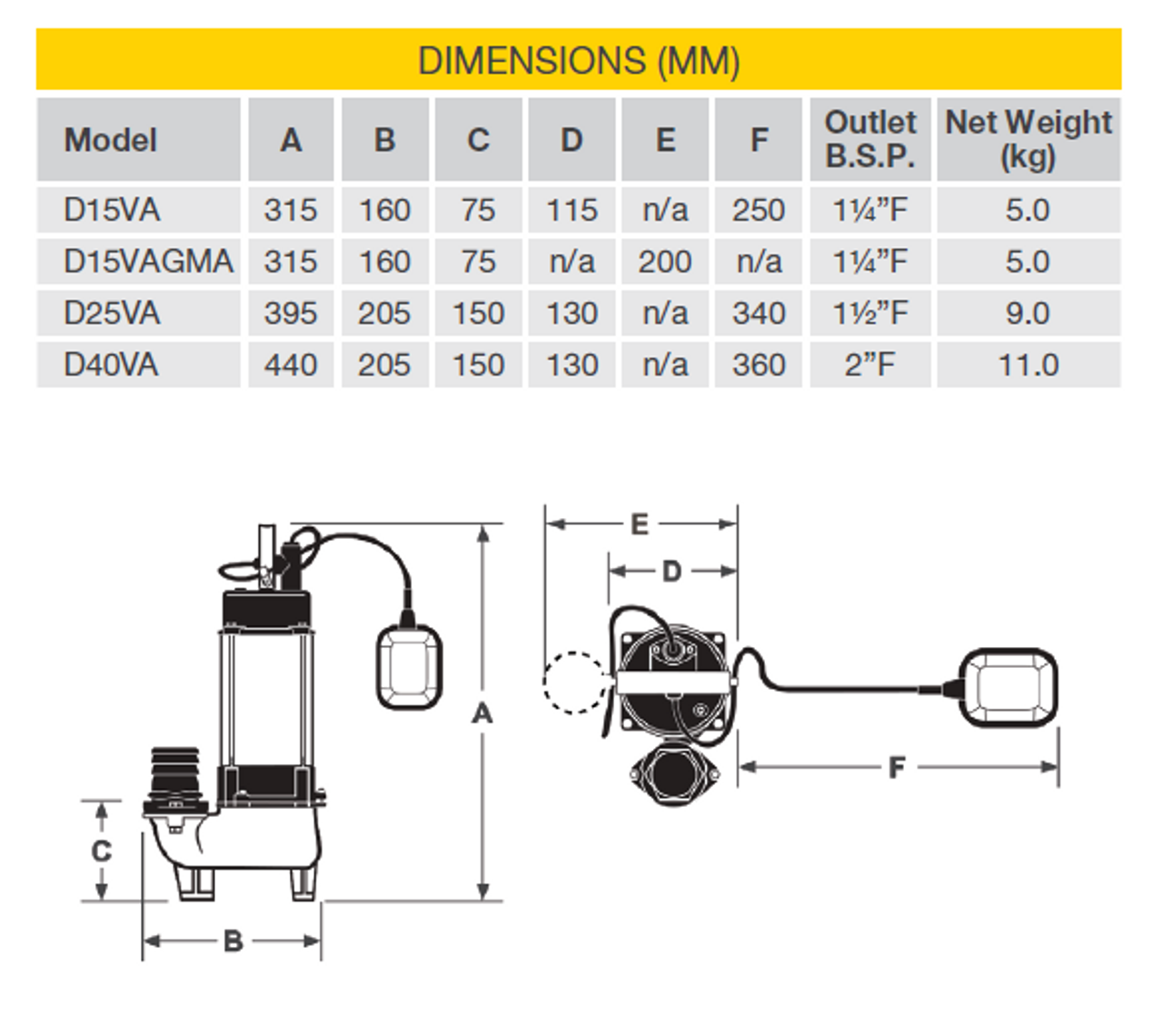

- Dimensions – 395mm x 205mm x 150mm
- Warranty – 2 Years
- Applications – Grey Water Pumping, Sump Emptying, Septic Effluent Disposal, Water Transfer, Light Slurries & Factory Waste
Downloads:
Vortext 15VA_25VA_40VA_Datasheet
