Product Description

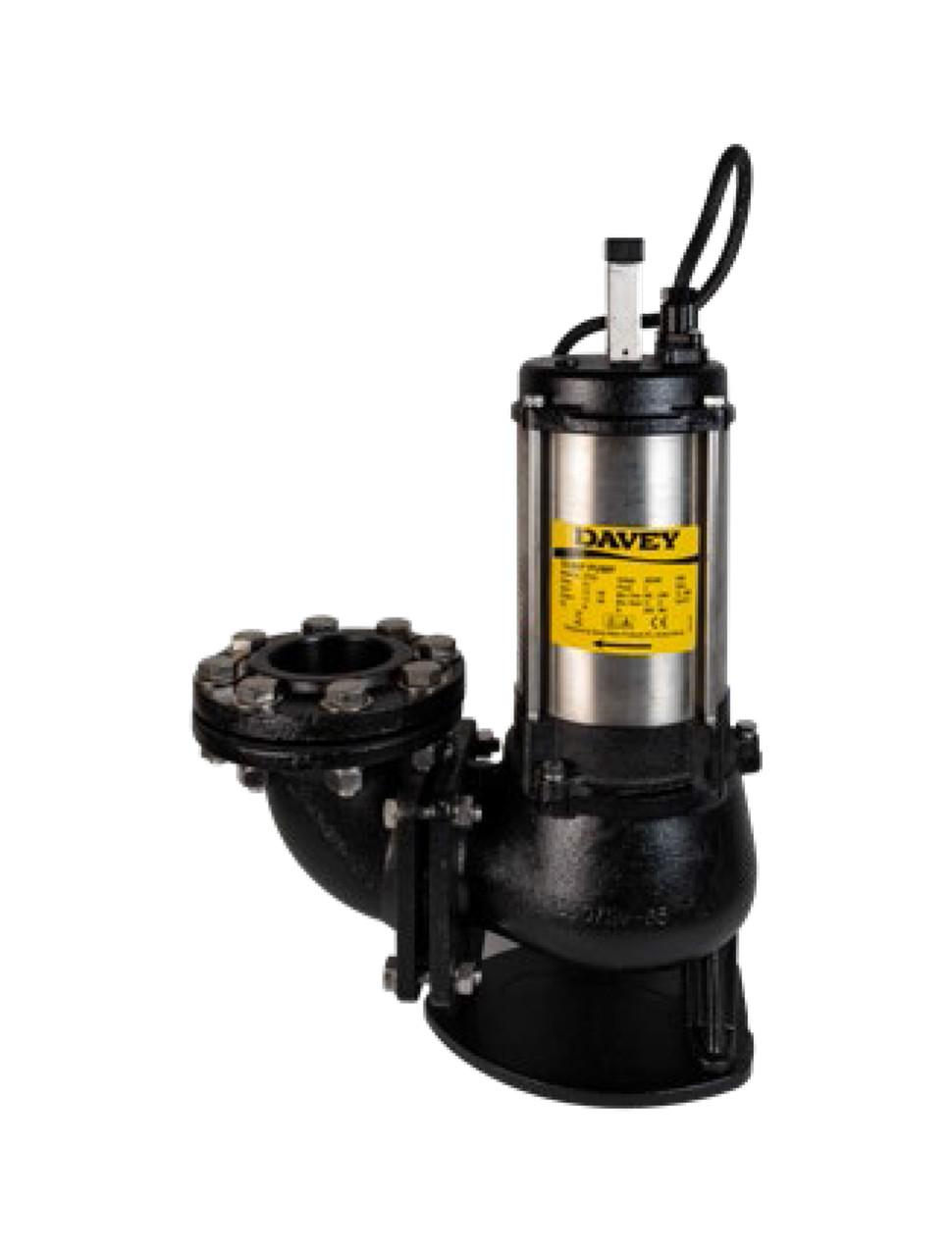

The Davey D150V is a heavy-duty submersible vortex sewage pump designed for grey water pumping, sump emptying, septic effluent disposal, water transfer, light slurries and factory waste.
The D150V uses a vortex pumping design suited to handling clean or grey water containing small soft solids while reducing the risk of blockage. Heavy-duty construction includes a cast iron impeller, pump casing and outlet, with a corrosion-resistant 304 stainless steel motor shell, pump shaft, handle and fasteners.
Powered by a 1.5kW single-phase motor, the D150V features double mechanical shaft seals in an oil bath, including a silicon carbide/ceramic seal on the pump side, together with a sand slinger lip seal for additional protection. A mounting base provides stable positioning, while slide rail kits are available for easier removal and reinstallation.
Key Specifications:
- Model – Davey D150V
- Pump Type – Submersible Vortex Sewage Pump
- Operation – Manual / External Level Control
- Impeller Type – Vortex
- Suitable Fluids – Clean or Grey Water of Neutral pH with up to 20% Small Soft Solids or 1% Fine Solids
- Impeller – Cast Iron
- Pump Casing – Cast Iron
- Outlet – Cast Iron
- Outlet Connection – 3" Female BSP
- Pump Side Mechanical Seal – Silicon Carbide/Ceramic in Oil Bath
- Motor Side Mechanical Seal – Carbon/Ceramic
- Additional Seal Protection – Sand Slinger Lip Seal
- Shaft Seal Elastomer – Nitrile Rubber
- O-Rings – Nitrile Rubber
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Handle – 304 Stainless Steel
- Fasteners – 304 Stainless Steel
- Output Power – 1.5kW
- Supply – 220–240V Single Phase, 50Hz
- Full Load Current – 13.0A
- Locked Rotor Current – 65.0A
- Starting – CSIR
- Motor Speed – 2850rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Motor Protection – Automatic Resetting Thermal Overload
- Power Cable – 10m HO7RN-F Oil Resistant Lead with 15A 3-Pin Plug
- Net Weight – 24kg
- Dimensions – 600mm x 395mm x 230mm
- Warranty – 2 Years
- Applications – Grey Water Pumping, Sump Emptying, Septic Effluent Disposal, Water Transfer, Light Slurries & Factory Waste
