Product Description
The Davey D15VA is a compact semi-vortex submersible pump designed for grey water pumping, sump emptying, septic effluent disposal, water transfer, light slurries and factory waste.
The D15VA features an automatic float switch for start and stop operation as the water level changes. Its semi-vortex open centrifugal impeller is designed to handle soft solids in suspension with reduced susceptibility to blockage, while a special recirculation port helps keep soft solids agitated in the sump for improved solids removal.
With a maximum flow of 140 L/min and maximum head of 7 metres, the D15VA is suited to domestic and light commercial dewatering and effluent applications. It features a corrosion-resistant 304 stainless steel motor shell, shaft, strainer and fasteners, automatic resetting thermal overload protection and a 10 metre HO7RN-F oil-resistant lead with 3-pin plug.
Key Specifications:
- Model – Davey D15VA
- Pump Type – Semi-Vortex Submersible Grey Water Pump
- Operation – Automatic Float Switch
- Maximum Flow – 140 L/min
- Maximum Head – 7m
- Maximum Soft Solids – 20mm O.D.
- Maximum Submergence – 12m
- Maximum Operating Temperature – 50°C
- Impeller Type – Semi-Vortex Open Centrifugal
- Impeller – Polycarbonate
- Pump Casing – Glass-Filled Polycarbonate
- Pump Side Mechanical Seal – Silicon Carbide/Ceramic in Oil Bath
- Shaft Seal Elastomer – Nitrile Rubber
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Handle – 304 Stainless Steel
- Fasteners – 304 Stainless Steel
- Strainer – 304 Stainless Steel
- Motor Protection – Automatic Resetting Thermal Overload
- Output Power – 150W
- Supply – 220–240V Single Phase, 50Hz
- Start Current – 9.0A
- Run Current – 1.5A
- Outlet Connection – 1¼" Female BSP
- Power Cable – 10m HO7RN-F Oil Resistant Lead
- Plug – 3-Pin Plug
- Net Weight – 5kg

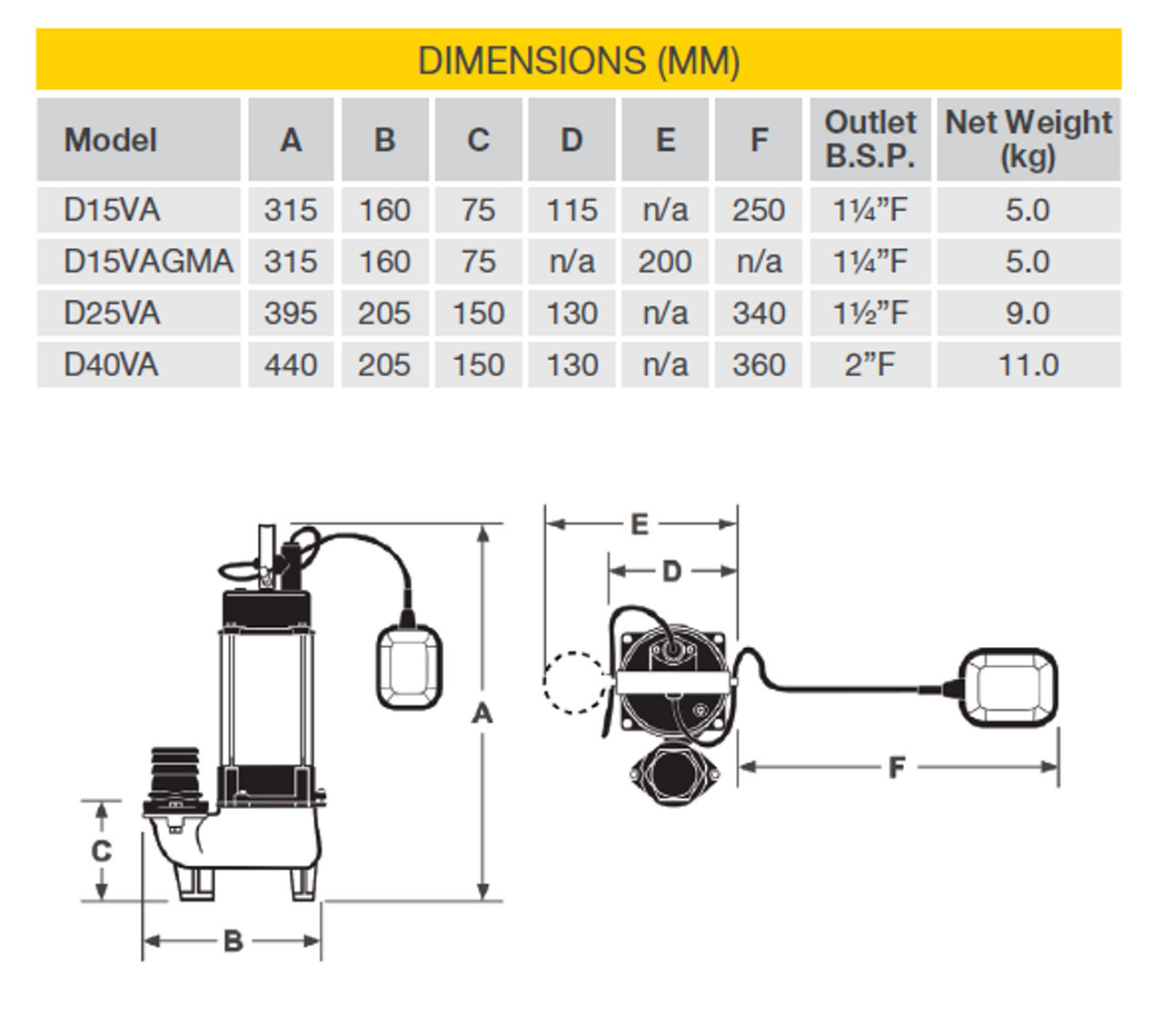

- Dimensions – 315mm x 160mm x 75mm
- Warranty – 2 Years
- Applications – Grey Water Pumping, Sump Emptying, Septic Effluent Disposal, Water Transfer, Light Slurries & Factory Waste
