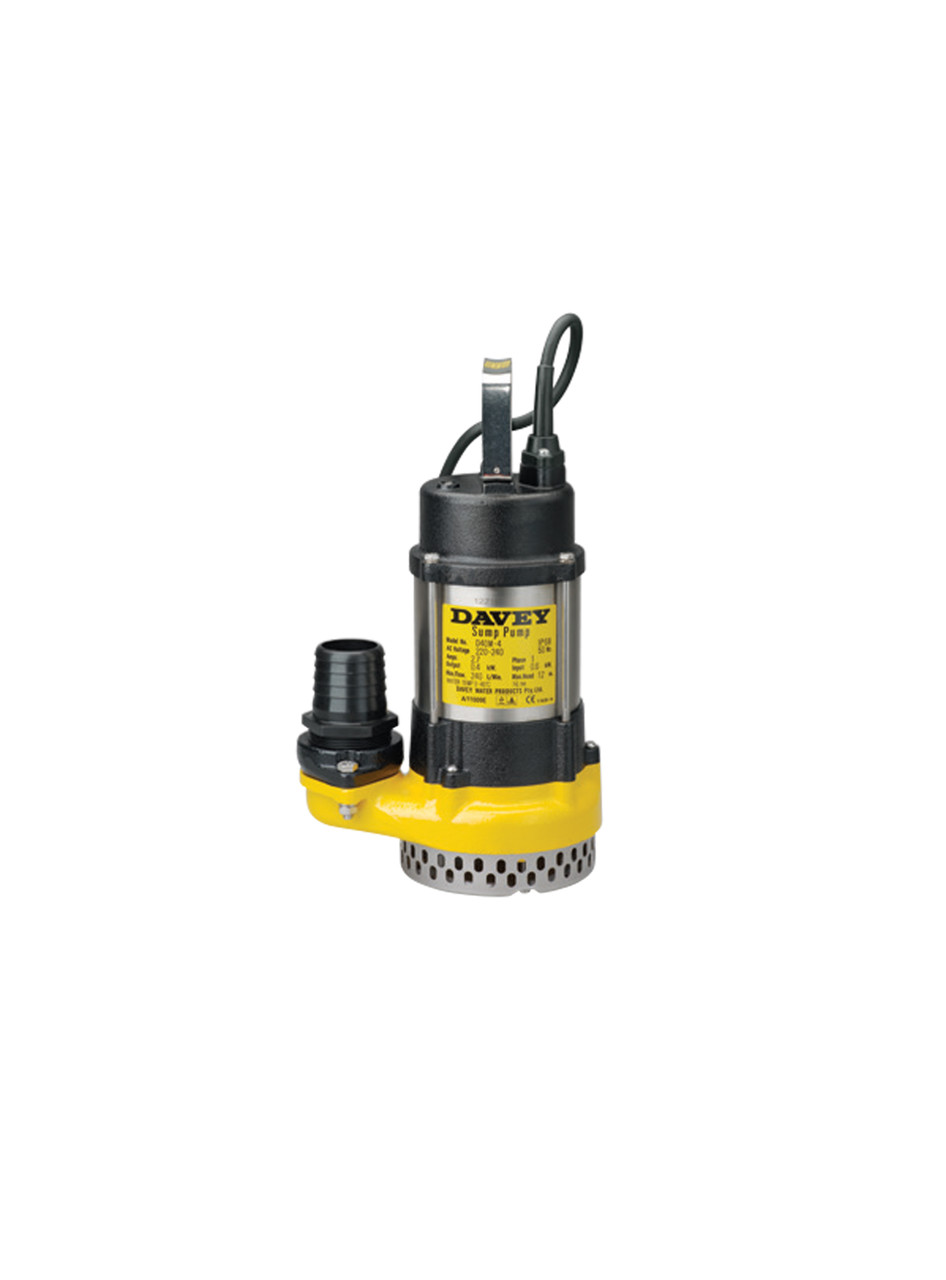

Product Description
The Davey D40M is a commercial submersible dewatering pump designed for dewatering cellars, garages, ditches, pits and ponds, pumping clean or slightly dirty water, sump emptying and decorative water features.
The D40M is the manual-operation version without a float switch. Its open centrifugal impeller can handle small soft solids in suspension and is designed to reduce the risk of blockage, while the 304 stainless steel motor shell and strainer provide corrosion resistance and durability.
With a maximum flow of approximately 240 L/min and maximum head of approximately 12 metres, the D40M provides reliable performance for dewatering and drainage applications. The single-phase motor includes automatic resetting thermal overload protection and is supplied with a 10 metre oil-resistant power lead and 3-pin plug.
Key Specifications:
- Model – Davey D40M
- Pump Type – Commercial Submersible Dewatering Pump
- Operation – Manual
- Maximum Flow – Approximately 240 L/min
- Maximum Head – Approximately 12m
- Maximum Submergence – 10m
- Maximum Operating Temperature – 50°C
- Impeller Type – Open Centrifugal
- Impeller – Cast Iron
- Outlet Connection – 2" Female BSP
- Pump Body – Cast Iron
- Motor Top – Cast Iron
- Motor Shell – 304 Stainless Steel
- Strainer – 304 Stainless Steel
- Handle – 304 Stainless Steel
- Fasteners – 304 Stainless Steel
- Motor Protection – Automatic Resetting Thermal Overload
- Output Power – 400W
- Supply – 240V Single Phase, 50Hz
- Run Current – 3.7A
- Start Current – 10.5A
- Motor Speed – 2850rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Power Cable – 10m HO7RN-F Oil Resistant Lead
- Plug – 3-Pin Plug
- Net Weight – 11kg

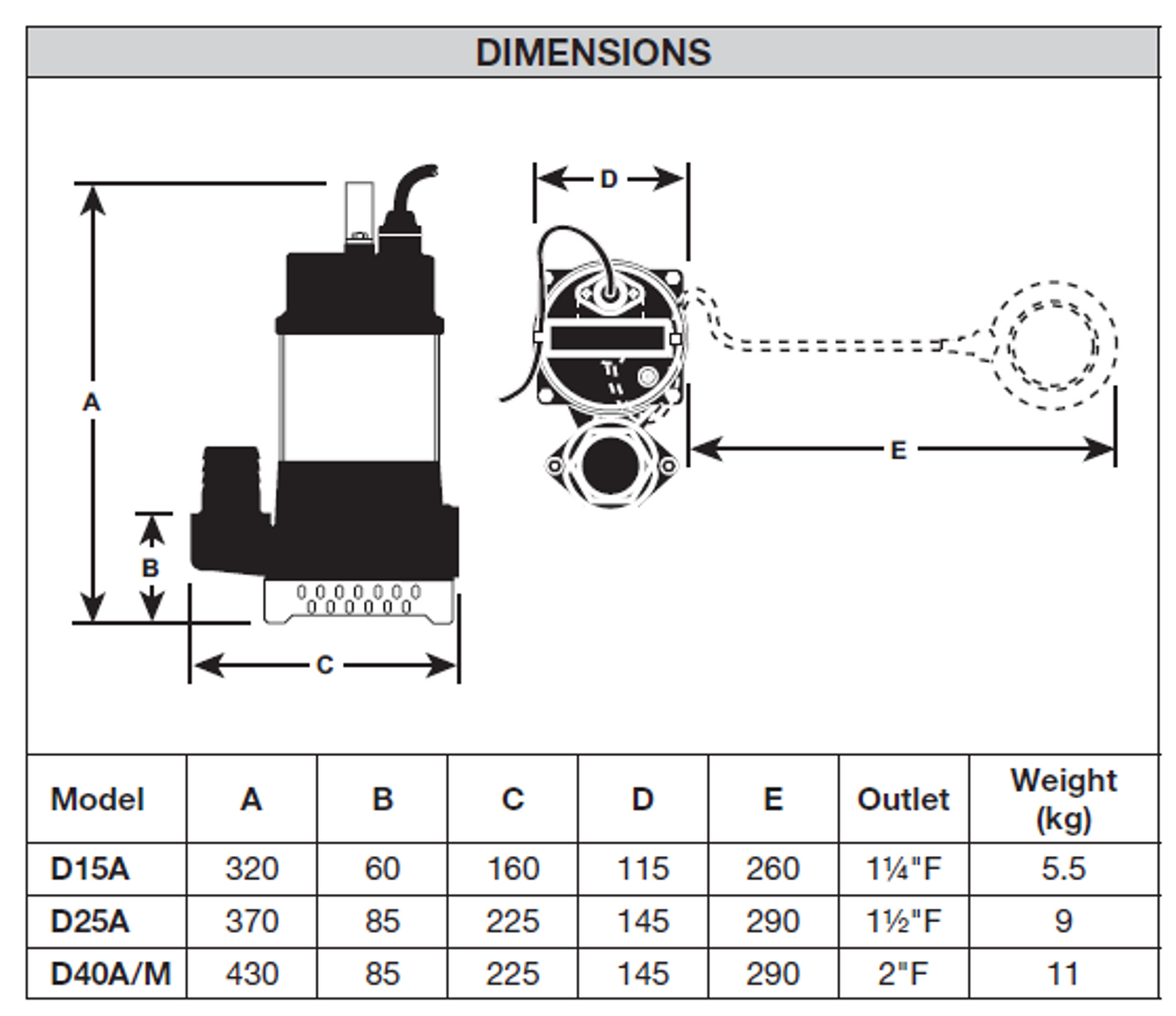

- Dimensions – 430mm Overall Height x 225mm Width
- Warranty – 2 Years
- Applications – Dewatering Cellars, Garages, Ditches, Pits & Ponds, Sump Emptying & Decorative Water Features
