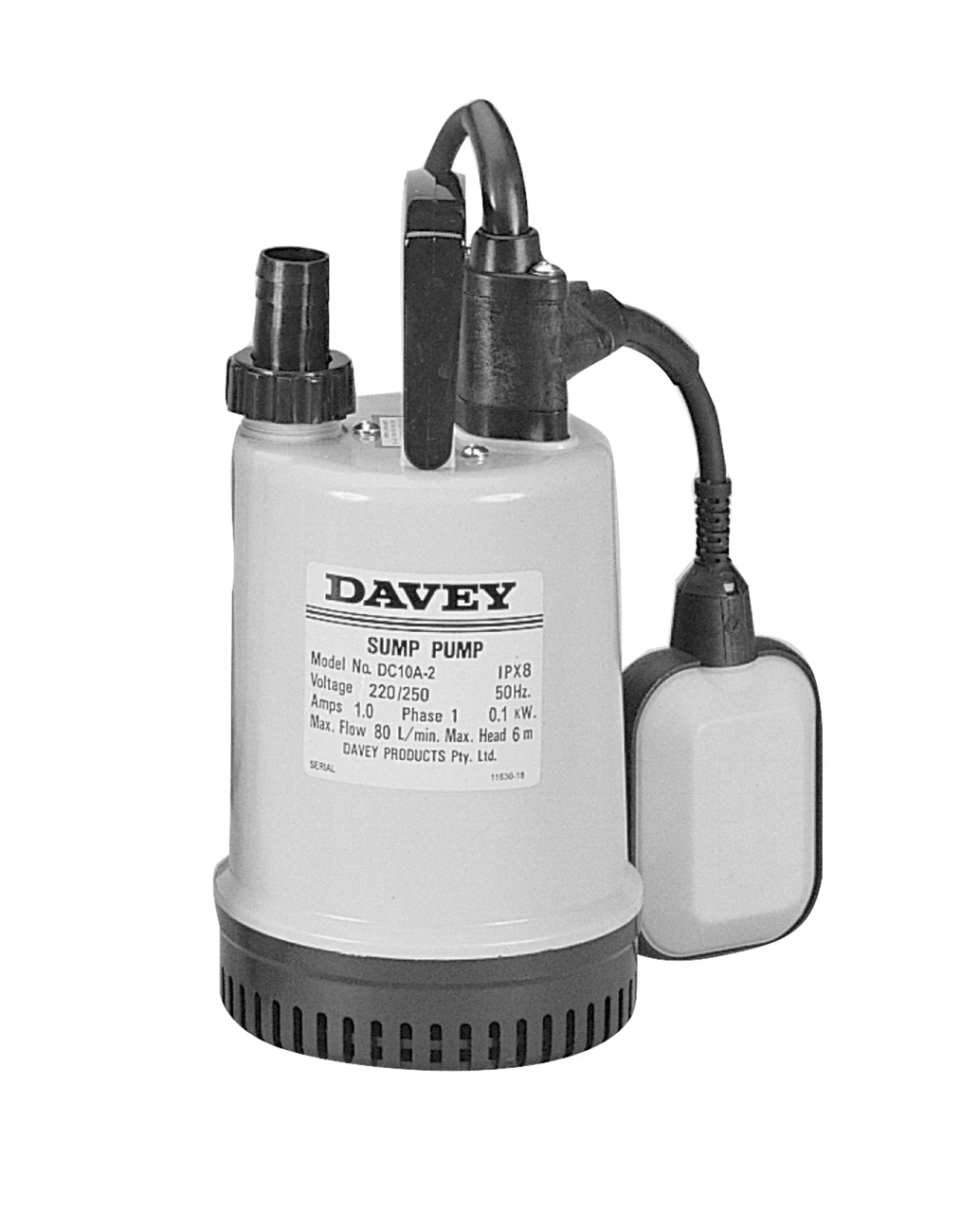

  • DC10M Product Photo

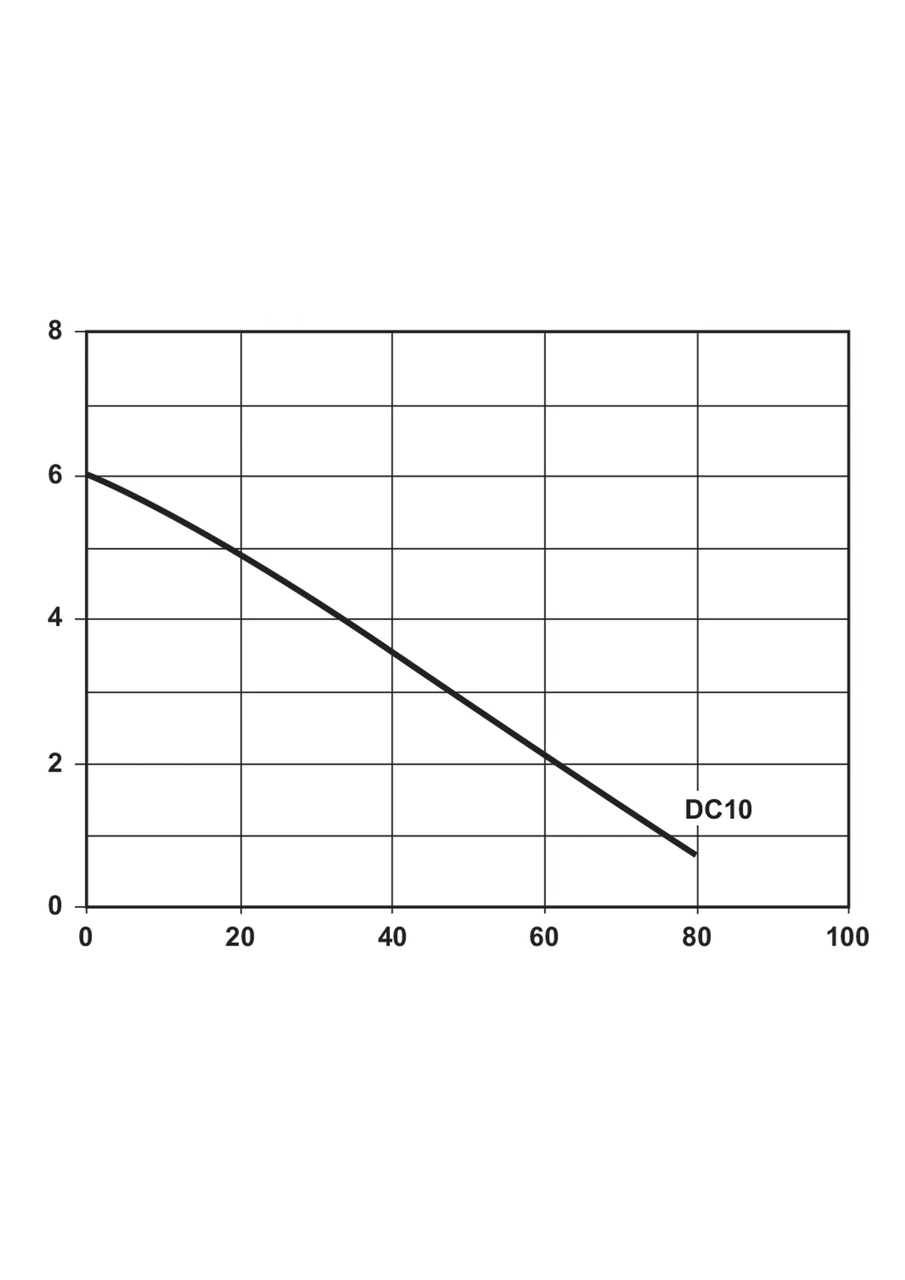

  • DC10M Performance Curve

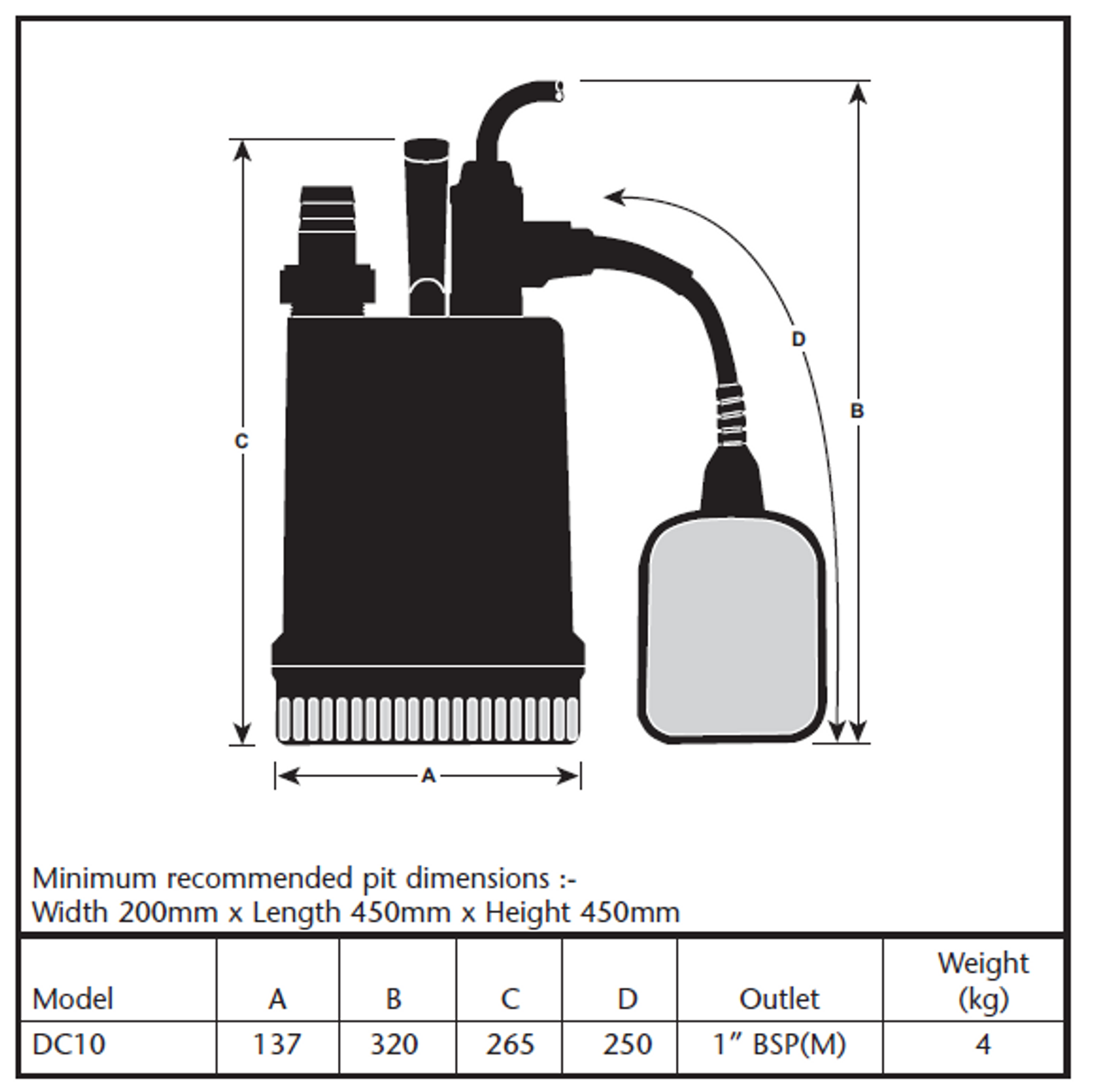

  • DC10M Dimensional Drawing

    • Davey Rainwater Sump Pump DC10M - Manual

    $329.00
    SKU:
    DC10M
    DAVEY OFFLINE ORDER ONLY:
    Due to new DAVEY sales requirements - Purchases must be made OFFLINE. Call us on (08) 9350 9090 or email sales@pumpswa.com.au
    Phase:
    Single , 240v
    KW:
    0.1
    Outlet:
    25 mm , 1Â? Inch BSP(M)
    Max Flow:
    80 LPM
    Max Head:
    6 Metres
    Max Submergence:
    10 Metres
    Max Water Temperature:
    50°C
    Soft Organic Solid:
    up to 10% of small soft organic solids (<10mm OD)
    Applications:
    Stormwater & Surface runn off water

    Product Description

    PRODUCT DESCRIPTION

    Double cased submersible dewatering sump pump.



    APPLICATIONS

    • Domestic fountains or waterfalls*

    • Sump emptying

    • Emergency flood relief

    • Water transfer

    • Pumping in partially submerged applications

    “A” suffix models equipped with preset length float switch for automatic operation.



    FEATURES & BENEFITS

    Open impeller, semi-vortex, centrifugal design

    • Able to pump small soft solids in suspension

    • Less susceptible to blockage Hard faced silicon carbide / ceramic mechanical shaft seal in oil bath

    • Added motor protection

    • Long service life Sand slinger lip seal

    • Added protection

    • Long service life Corrosive resistant 304 stainless steel fasteners

    • Long service life

    • Attractive, lasting appearance Double case with full discharge flow past internal motor shell

    • Able to operate in partially submerged installations

    • Better motor cooling for longer life Automatic resetting thermal overload

    • Protected against overloading HO7RNF oil resistant leads with 3 pin power plug

    • Easy to connect to power supply

    • Longer life in dirty water



    Download :

    DC10A_DC10M_Datasheet

    DC10A_DC10M_Installation_and_Operating_Manual

    Other Details

    Warranty 1 Years

    Product Videos

    Custom Field

    DAVEY OFFLINE ORDER ONLY Due to new DAVEY sales requirements - Purchases must be made OFFLINE. Call us on (08) 9350 9090 or email sales@pumpswa.com.au
    Phase Single , 240v
    KW 0.1
    Outlet 25 mm , 1Â? Inch BSP(M)
    Max Flow 80 LPM
    Max Head 6 Metres
    Max Submergence 10 Metres
    Max Water Temperature 50°C
    Soft Organic Solid up to 10% of small soft organic solids (<10mm OD)
    Applications Stormwater & Surface runn off water
