Product Description

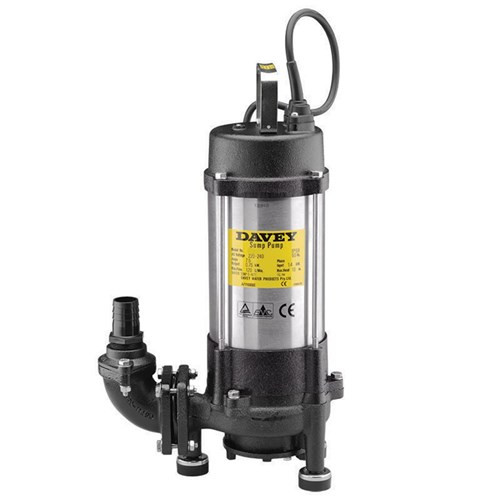

The Davey D150GA is a heavy-duty submersible grinder sewage pump with an automatic float switch, designed for grey and black water pumping, sump emptying, septic effluent and sewage disposal, and wastewater containing soft solids in suspension.
The D150GA features a heavy-duty shredding and grinding ring at the inlet that reduces soft organic solids, sanitary products, thin rubber products and some textiles into a slurry for pumping. Its centrifugal open impeller helps prevent blockage by small solids in the slurry, while its high-head design allows connection to smaller discharge pipe systems and is particularly suited to pumping wastewater to pressure sewer mains.
Powered by a 1.5kW single-phase motor, the D150GA features a cast iron impeller and pump casing, high chromium steel shredding and grinding rings, and a 304 stainless steel pump shaft and motor shell. Double mechanical shaft seals operate in a captive oil bath, with a silicon carbide/ceramic seal on the pump side, while a seal sensor lead allows connection to a protection relay for early detection of seal leakage. The automatic float switch starts and stops the pump as the water level rises and falls.
Key Specifications:
- Model – Davey D150GA
- Pump Type – Submersible Grinder Sewage Pump
- Operation – Automatic Float Switch
- Impeller Type – Centrifugal Open Impeller
- Grinder – Heavy-Duty Shredding and Grinding Ring
- Shredding Ring – High Chromium Steel
- Grinding Ring – High Chromium Steel
- Maximum Submergence – 20m
- Maximum Operating Temperature – 40°C
- Suitable Fluids – Sewage or Grey Water of Neutral pH with up to 20% Soft Organic Solids
- Impeller – Cast Iron FCD 400
- Pump Casing – Cast Iron FCD 400
- Outlet – Cast Iron FC200
- Outlet Connection – 1¼" Female BSP
- Pump Side Mechanical Seal – Silicon Carbide/Ceramic
- Motor Side Mechanical Seal – Carbon/Ceramic
- Mechanical Seals – Captive Oil Bath with Oil Seal
- Additional Seal Protection – Sand Slinger Lip Seal
- Shaft Seal Elastomer – Nitrile Rubber
- O-Rings – Nitrile Rubber
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Fasteners – 304 Stainless Steel
- Output Power – 1.5kW
- Supply – 220–240V Single Phase, 50Hz
- Full Load Current – 13.0A
- Motor Speed – 2900rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Motor Protection – Automatic Resetting Thermal Overload
- Power Cable – 10m HO7RN-F Oil Resistant Lead with Bared Ends
- Seal Sensor – Seal Sensor Lead for Connection to a Protection Relay
- Float Switch – Automatic
- Net Weight – 37kg

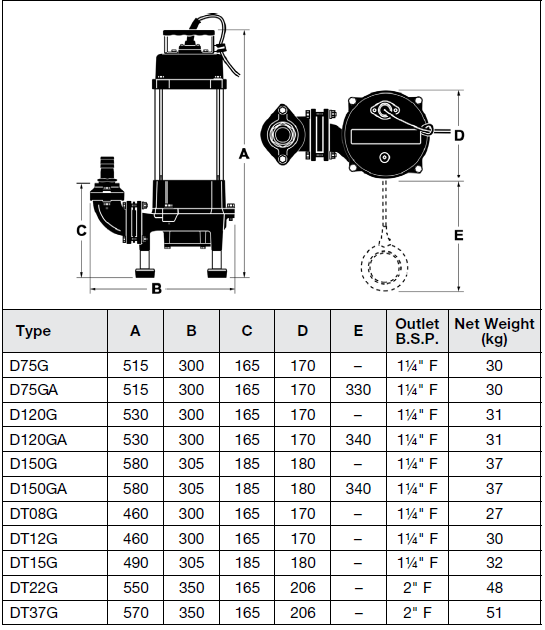

- Dimensions – 580mm x 305mm x 185mm
- Warranty – 2 Years
- Applications – Grey & Black Water Pumping, Sump Emptying, Septic Effluent, Sewage Disposal, Wastewater &
- Pressure Sewer Systems
Downloads:
Submersible_Grinder_Datasheet_Instalation_and_Operating_Instructions
