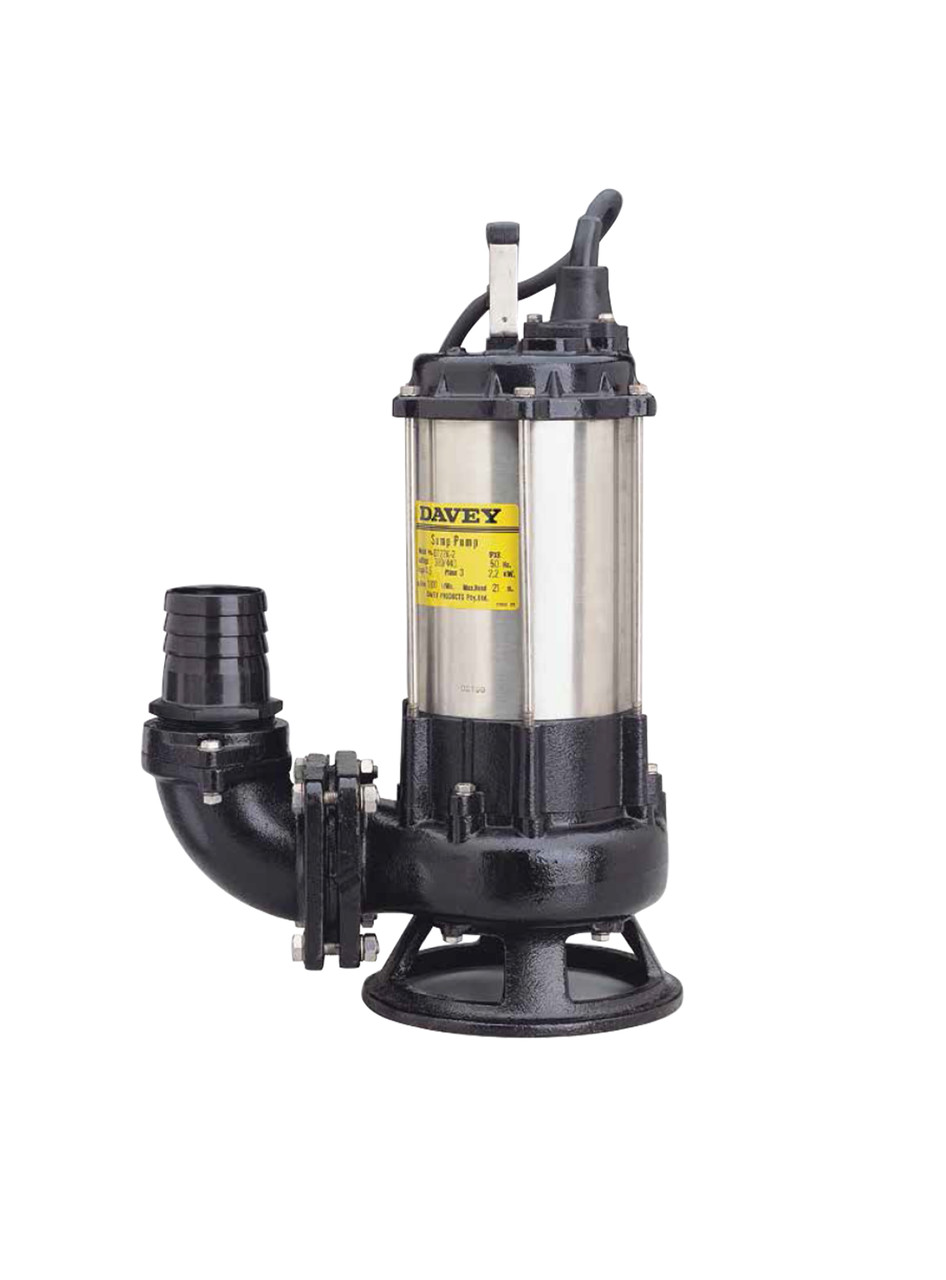

  • D75SA Product Photo
  • D75SA Performance Curve
  • D75SA Dimensional Drawing

    • Davey Single Channel Sewage Pump D75SA c/w Float Switch

    $943.86
    SKU:
    D75SA
    DAVEY OFFLINE ORDER ONLY:
    Due to new DAVEY sales requirements - Purchases must be made OFFLINE. Call us on (08) 9350 9090 or email sales@pumpswa.com.au
    Phase:
    Single , 240v
    KW:
    0.75
    Outlet:
    50 mm , 2 InchÂ? BSP(M)
    Max Flow:
    2150 LPM
    Max Head:
    32 Metres
    Max Submergence:
    25 Metres
    Max Water Temperature:
    40°C
    Soft Organic Solid:
    up to 80% of discharge size
    Applications:
    Semi screened raw sewage , stock effluent , grease traps

    Product Description

    Applications :

    • Sewage water pumping

    • Storm water pumping

    • Sump emptying

    • Septic effluent disposal

    • Water transfer

    • Pumping of light slurries and factory waste



    Benefits :

    Corrosion resistant 304 stainless steel shaft, motor shell and fasteners

    . • Long service life

    • Attractive, lasting appearance Open impeller, single channel, centrifugal design

    . • Able to pump soft solids in suspension

    • Less susceptible to blockage

    • Capable of higher heads/pressure Double mechanical shaft seal in oil bath with hard faced silicon

    carbide/ceramic seal on pump side.

    • Added motor protection

    • Long service life Sand slinger lip seal.

    • Added protection

    • Long service life Automatic resetting thermal overload

    .• Protected against overloading D75SA model fitted with automatic float switch with a preset float

    length.

    • Safe unattended operation All units fitted with10m harmonized HO7RNF oil resistant lead cable with

    bared ends.

    • Easy connection to power supply Mounting base fitted.

    • For a firm and stable positioning during installation and operation Slide rail kits available.

    • For easy removal and re-installation



    Downloads:

    Single_Channel_Sewage_Pump_Datasheet

    Single_Channel_Sewage_Pump_Datasheet_Installation_and_Operating_Instructions

    Other Details

    Warranty 1 Years

    Product Videos

    Custom Field

    DAVEY OFFLINE ORDER ONLY Due to new DAVEY sales requirements - Purchases must be made OFFLINE. Call us on (08) 9350 9090 or email sales@pumpswa.com.au
    Phase Single , 240v
    KW 0.75
    Outlet 50 mm , 2 InchÂ? BSP(M)
    Max Flow 2150 LPM
    Max Head 32 Metres
    Max Submergence 25 Metres
    Max Water Temperature 40°C
    Soft Organic Solid up to 80% of discharge size
    Applications Semi screened raw sewage , stock effluent , grease traps
