Product Description
The Davey Dynaprime X201 is a single stage self priming water transfer pump designed for clean or grey water containing small fibres or soft solids. It is suitable for water supply, general water transfer, septic tank emptying and draining water tanks in domestic, rural and agricultural applications.
The pump features a single stage open vane impeller with a stainless steel impeller wear plate, allowing it to handle water containing some small fibres or soft solids. Its corrosion-resistant glass-filled Noryl casing, mechanical shaft seal and built-in check valve provide durability and assist with quick self priming. The pump and motor are also designed to accommodate frequent starts.

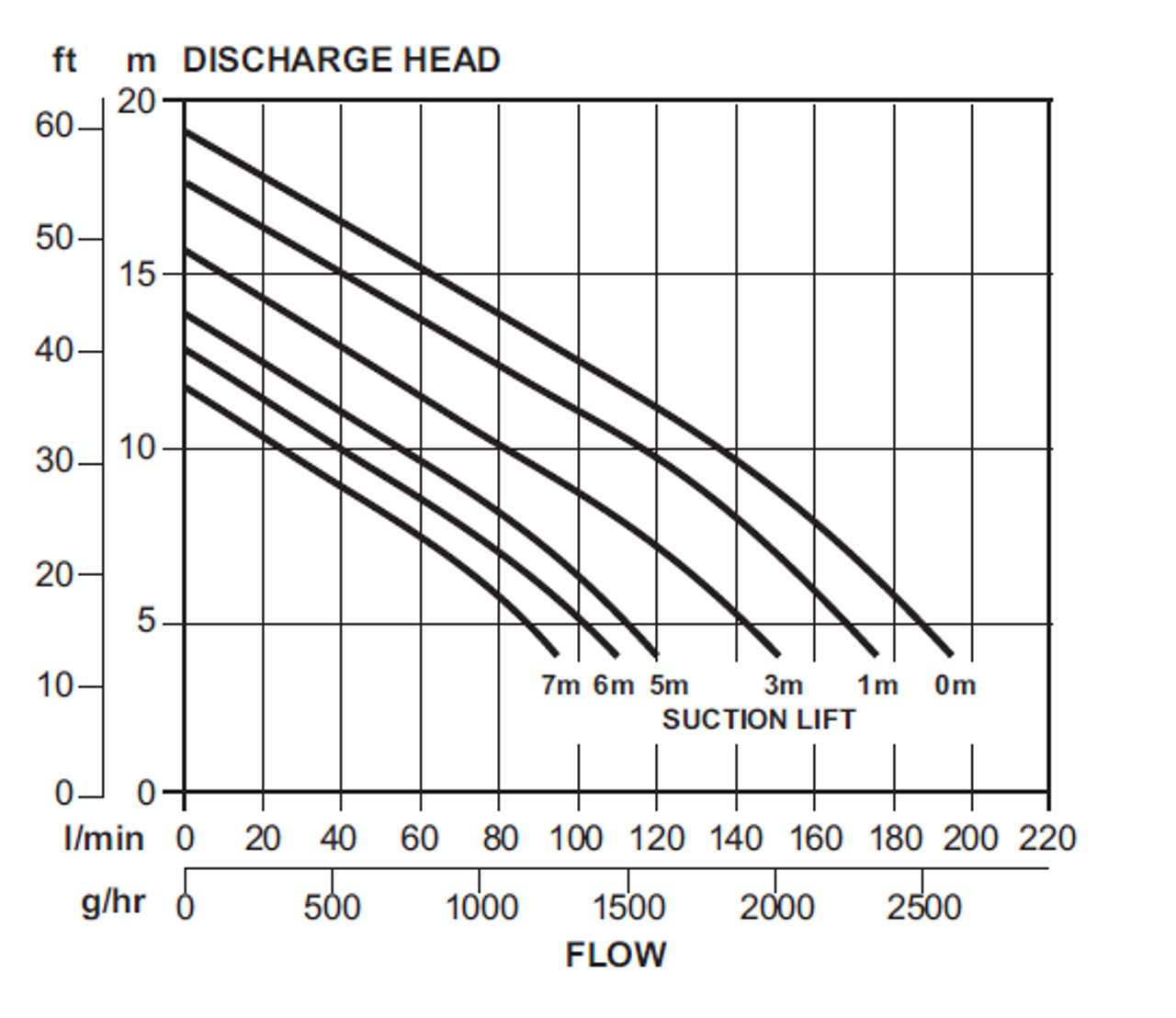

The Dynaprime X201 uses a 0.70kW output motor operating on 220–250V single-phase power at 50Hz. It delivers flows up to 195 L/min and heads up to 18 metres, with a maximum self priming suction head of 7.5 metres. The pump features 32mm (1 1/4") female BSP inlet and outlet connections.
Key Specifications:
- Model – Davey Dynaprime X201
- Model Number – 74101
- Product Type – Single Stage Self Priming Water Transfer Pump
- Pump Design – Single Stage, Open Vane Impeller
- Maximum Flow – 195 L/min
- Maximum Head – 18 Metres
- Maximum Self Priming Suction Head – 7.5 Metres
- Supply Voltage – 220–250V
- Supply Frequency – 50Hz
- Phase – Single Phase
- Input Power (P1) – 0.95kW
- Output Power (P2) – 0.70kW
- Full Load Current – 4.4A
- Locked Rotor Current – 18.0A
- Motor Type – TEFC
- Motor Enclosure Class – IP55
- Insulation Class – Class F
- Motor Starting – PSC
- Motor Protection – Built-In Thermal Overload
- Motor Bearings – Double Contact C3-HTG Sealed Bearings
- Inlet – 32mm (1 1/4") Female BSP
- Outlet – 32mm (1 1/4") Female BSP
- Maximum Casing Pressure – 300kPa
- Water Temperature Range – 1°C to 50°C
- Maximum Ambient Temperature – 55°C
- Pump Casing – Glass Filled Noryl
- Impeller – Glass Filled Nylon, Open Vane
- Impeller Wear Plate – 304 Stainless Steel
- Mechanical Seal – Carbon / Ceramic
- Seal Spring – 304 Stainless Steel
- O-Rings – Nitrile Rubber
- Built-In Check Valve – Delrin
- Priming Plug – Glass Filled Nylon
- Motor Shell – Marine Grade Aluminium
- Motor Finish – Baked Polyester
- Length – 375mm
- Height – 225mm
- Net Weight – 8.8kg
- Warranty – 2 Years
- Applications – Water Supply, Water Transfer, Septic Tank Emptying & Draining Water Tanks
