Product Description

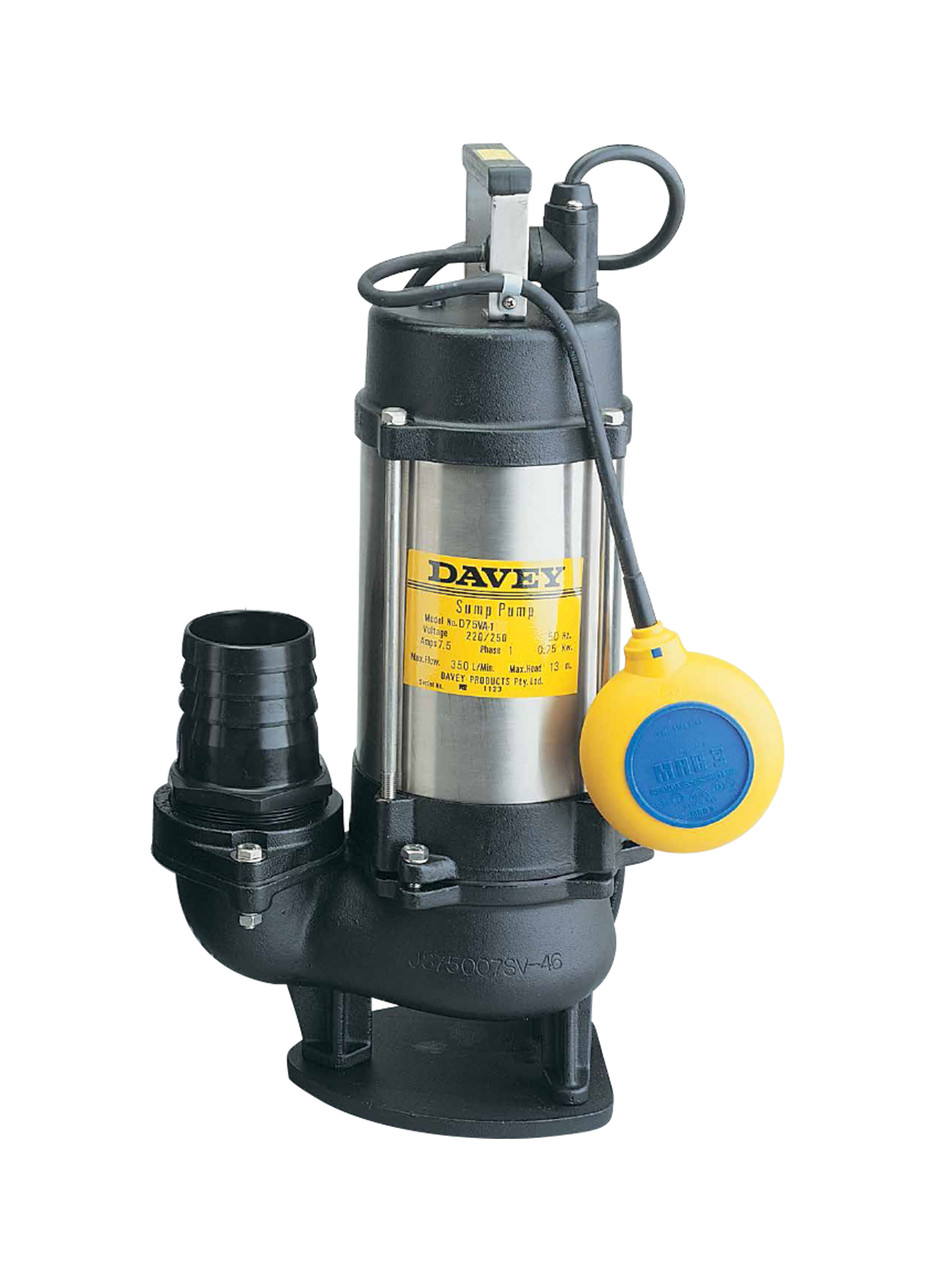

The Davey DT08V is a submersible vortex pump designed for grey water pumping, sump emptying, septic effluent disposal, water transfer and wastewater containing soft solids in suspension.
The DT08V uses an open vortex centrifugal impeller designed to handle soft solids in suspension with reduced susceptibility to blockage. Heavy-duty construction includes a cast iron impeller, pump casing and outlet, with a 304 stainless steel pump shaft, motor shell, handle and fasteners.
With capacities up to 600 L/min and heads up to 8.5 metres, the DT08V is designed for demanding grey water, sewage and effluent applications. Its 0.75kW three-phase motor features double mechanical shaft seals in a captive oil bath and a sand slinger lip seal for added protection.
Key Specifications:
- Model – Davey DT08V
- Pump Type – Submersible Vortex Grey Water / Sewage Pump
- Operation – Manual / External Level Control
- Impeller Type – Open Vortex Centrifugal
- Maximum Flow – 600 L/min
- Maximum Head – 8.5m
- Maximum Soft Solids – 46mm O.D.
- Maximum Submergence – 20m
- Maximum Operating Temperature – 40°C
- Suitable Fluids – Sewage or Grey Water of Neutral pH with up to 20% Soft Organic Solids
- Impeller – Cast Iron
- Pump Casing – Cast Iron
- Outlet – Cast Iron
- Outlet Connection – 3" Female BSP
- Pump Side Mechanical Seal – Silicon Carbide/Ceramic
- Motor Side Mechanical Seal – Carbon/Ceramic
- Mechanical Seals – Captive Oil Bath with Oil Seal
- Additional Seal Protection – Sand Slinger Lip Seal
- Shaft Seal Elastomer – Nitrile Rubber
- O-Rings – Nitrile Rubber
- Pump Shaft – 304 Stainless Steel
- Motor Shell – 304 Stainless Steel
- Handle – 304 Stainless Steel
- Fasteners – 304 Stainless Steel
- Output Power – 0.75kW
- Supply – 380–440V Three Phase, 50Hz
- Full Load Current – 1.9A
- Locked Rotor Current – 10.5A
- Starting – DOL
- Motor Speed – 2850rpm
- IP Rating – IPX8
- Insulation Class – Class F
- Power Cable – 10m HO7RN-F Oil Resistant Lead
- Net Weight – 31kg
- Dimensions – 435mm x 280mm x 200mm
- Warranty – 1 Year
- Applications – Grey Water Pumping, Sump Emptying, Septic Effluent Disposal, Water Transfer & Wastewater with Soft Solids
